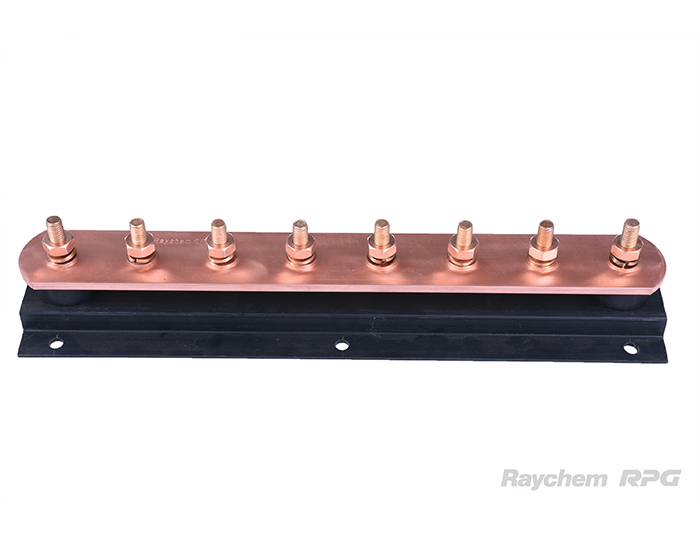

![Earth Bar](https://www.raychemrpg.com/assets/images/gallery/VK8ahsB1AgOnXe2ANxKPNJTXkmrTjK.jpg)
![FullScreen](https://www.raychemrpg.com/assets/images/product-details/full-screen.png)
- Features
- Help & Support
Provides common earth points. Earth Bars are made of High Conductivity hard drawn ETP Grade Copper. They are pre-drilled with M10 holes to facilitate/bond multiple connections to main electrical rooms, Genset & Tx Rooms. The Earth Bars are provided as a complete assembly mounted on pre-drilled UPVC channel base with spacers manufactured from Specially Filled & Reinforced Polypropylene Compound. Swan-Neck accessory is used to facilitate connection to the main earth bar.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
Part No. |
Part No. |
Description |
Length |
Width |
Height |
---|---|---|---|---|---|
(Bare Copper) |
(Tinned) |
mm |
mm |
mm |
|
RREB-4 |
RREBT-4 |
4 way |
300 |
90 |
77 |
RREB-6 |
RREBT-6 |
6 way |
400 |
90 |
77 |
RREB-8 |
RREBT-8 |
8 way |
500 |
90 |
77 |
RREB-10 |
RREBT-10 |
10 way |
650 |
90 |
77 |
RREB-12 |
RREBT-12 |
12 way |
750 |
90 |
77 |
RREB-14 |
RREBT-14 |
14 way |
850 |
90 |
77 |
RREB-16 |
RREBT-16 |
16 way |
950 |
90 |
77 |
RREB-18 |
RREBT-18 |
18 way |
1050 |
90 |
77 |
RREB-20 |
RREBT-20 |
20 way |
1200 |
90 |
77 |
RREB-22 |
RREBT-22 |
22 way |
1300 |
90 |
77 |
RREB-24 |
RREBT-24 |
24 way |
1400 |
90 |
77 |
RREB-26 |
RREBT-26 |
26 way |
1500 |
90 |
77 |
RREB-28 |
RREBT-28 |
28 way |
1650 |
90 |
77 |
RREB-30 |
RREBT-30 |
30 way |
1750 |
90 |
77 |
Technical Information
Parameter | Value |
---|---|
Copper Bus Bar | ETP Copper |
Finish | Bare/Tinned |
Base | UPVC |
Spacers | UPVC |
Fasteners | Phosphorous Bronze |
Certifications
![UL Listed](https://www.raychemrpg.com/assets/images/products/ldN1eQpAUFQlAR6VOtIvmF1p2oH3Yr.jpg)
UL Listed
More info available on request
![IEC certified](https://www.raychemrpg.com/assets/images/products/mHYltYdqq7Hb8xOAZn9Yklbd40vS0p.jpg)
IEC certified
More info available on request
