Support to air terminal rod and electrical connection between Air Rod and Down Conductor
- Air terminal base and saddles are used to provide support to air terminal rods on flat surfaces, ridges and connect them with tape/conductor.
- Catalog
- Add to List
- Enquire Now
Please connect with us
- Chat with Us Mon. to Sat. 9am to 6pm
Specifications
Air Terminal Base made for stranded and solid round conductor as per IEC 62561-1, BS EN 50164-1 and EN 50164-1. Standards |
||
---|---|---|

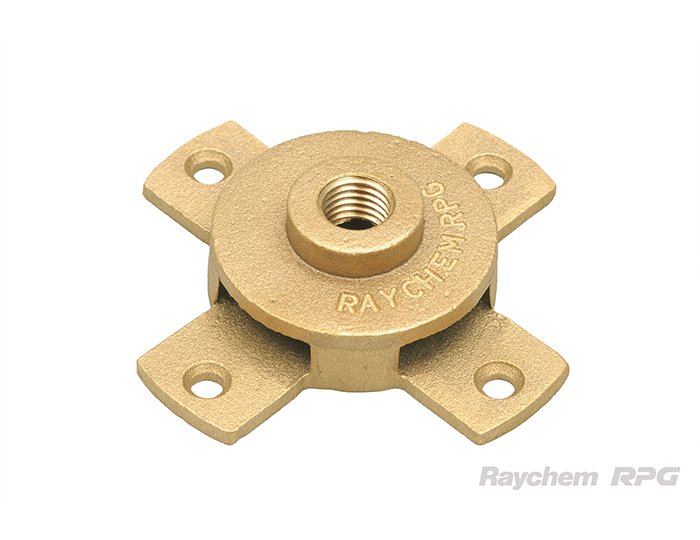

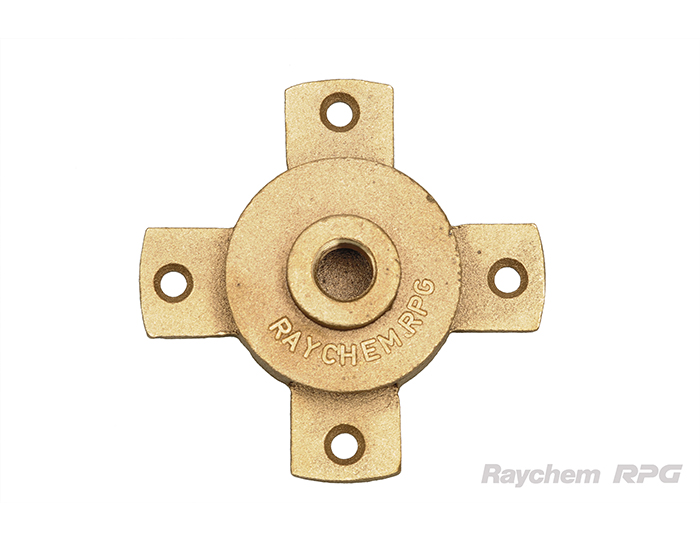

Base: Tape Type |
||
Part Code |
Thread Size |
Tape Size (mm) |
RAT-01 |
M16 |
25 X 3 |
RAT-03 |
M20 |
25 X 3 |

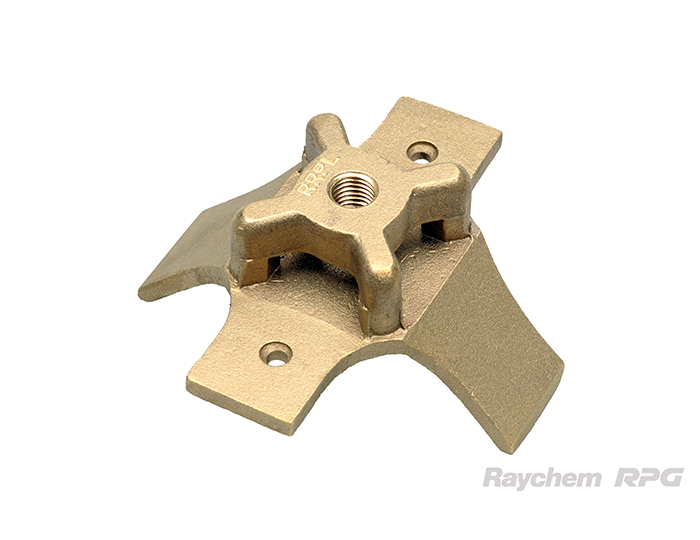

Ridge Saddle: Tape Type |
||
Part Code |
Thread Size |
Tape Size (mm) |
RRS-01 |
M16 |
30 X 6 |
RRS-03 |
M20 |
30 X 6 |
Base: Conductor Type |
||
Part Code |
Thread Size |
Cross Section (Sq.mm) |
RAT-101 |
M16 |
50 |
RAT-102 |
M20 |
50 |
RAT-103 |
M16 |
70 |
RAT-104 |
M20 |
70 |
RAT-105 |
M16 |
95 |
RAT-106 |
M20 |
95 |
Technical Information
Parameter |
---|
Base Tape Type - Electrical connection between air terminal rod and down conductor |
Ridge Saddle Tape Type - Provides support to air terminal rod on roof ridges |
Base Conductor Type - Electrical connection between air terminal rod and down conductor |
