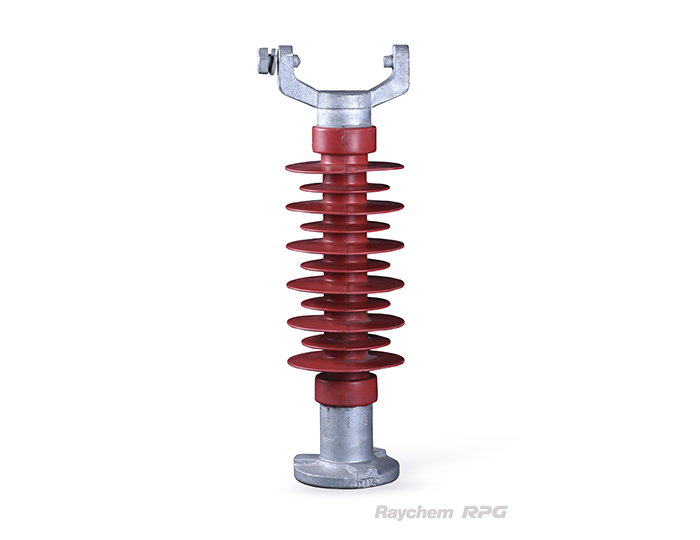

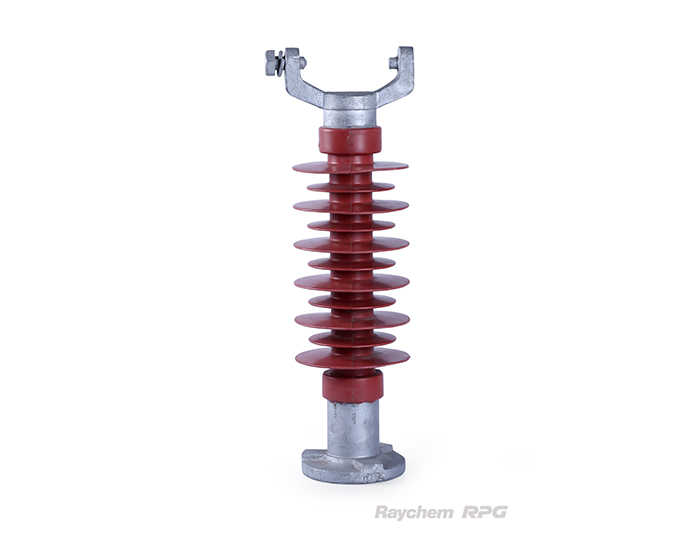

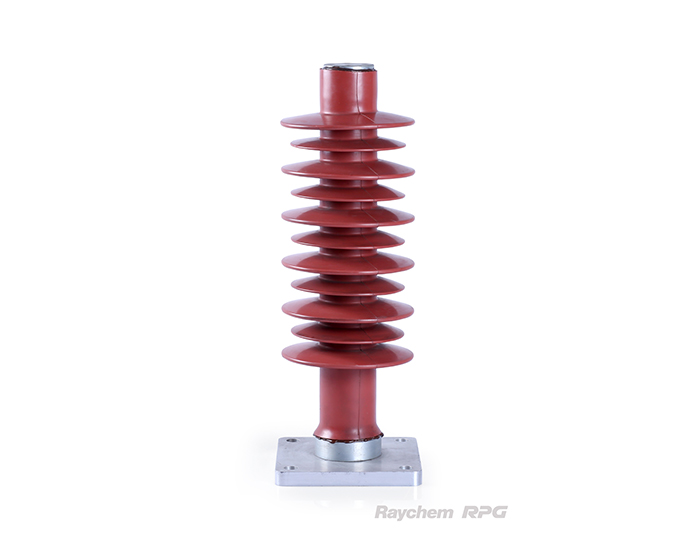

Post Insulators up to 52kV. Polymeric insulators combine mechanical strength with excellent pollution performance. High tensile strength of glass fiber combined with HV shed profile makes the insulator rugged and light weight for Line Post and Station Post applications.
- Compact design and break resistant
- Excellent tracking and erosion properties
- Hydrophobic properties for excellent pollution performance
- No maintenance required
- Light weight and easy installation
- Patented crimp design to maximize mechanical strength
- more...
- Catalog
- Add to List
- Enquire Now
Email Us
Chat with UsSpecifications
| Parameter |
|---|
| Available up to 52kV rating |
| Available from 5kN to 15kN mechanical rating |
| Offered in both Silicone & EVA as housing material |
| Available up to 40 mm/kV creepage distance |
| Product qualification as per IEC 62217, IEC 61952 & IEC 62231 specifications |
| Aerodynamic shed profile as per IEC815 |
| Have verity of end fitting options |
Certifications
CPRI
More info available on request
CESI
More info available on request
ERDA
More info available on request
