Exploring the Different Types and Features of Transformers

22 May 2023

Raychem RPG

Raychem RPG

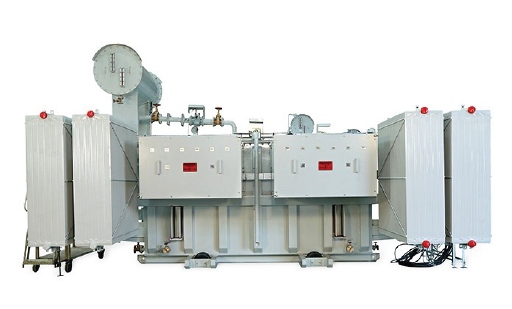

Inverter Duty Transformers: Upto & Including 20MVA, 33KV, 3/5 winding Xmer.

Features

  • Suitable for Solar load profile
  • Designed to withstand voltage excursions due to pulsed mode inverter operation
  • Electrostatic shield between & Primay & Secondary windings
  • Available in Copper / Aluminium windings

Vacuum Pressure Impregnated Transformers: Upto and Including 15MVA, 17.5KV, 3Ph Transformers

Features

  • Impregnation done under vacuum
  • Suitable for variable loads
  • Can be designed for 6, 12, 24 & 36 pulse converter applications with multi secondaries
  • Widely suitable for Variable frequency drives
  • Class of Insulation: H (180 deg c) N (200 deg c) & R (220 deg c)
  • IP protection upto IP54

Furnace Transformers: Upto & Including 15MVA, 33KV Xmer

Features

  • High current than conventional X'mer

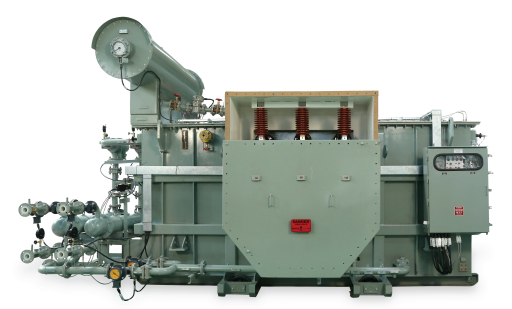

  • Image : Furnace Xmer
  • Provides Large voltage variation to suit furnace applications
  • Withstand Harmonics generated during to rectifier furnace operation
  • With OFWF cooling at 100% standby capacity
  • Comes with Off circuit or On load tap changers
  • Types - Induction, Arc & Laddle furnce applications

If you would like to know more about our transformers, click here.
