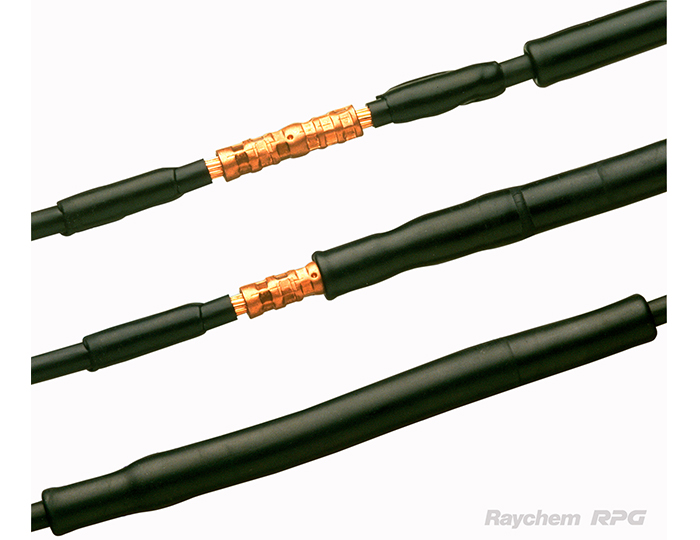

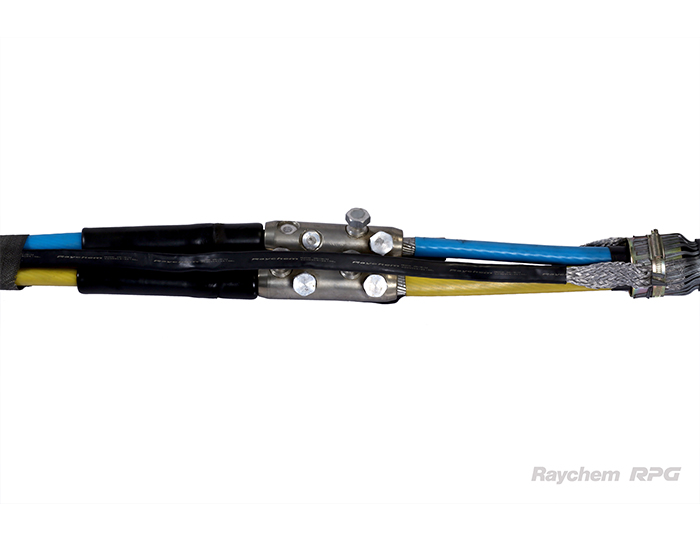

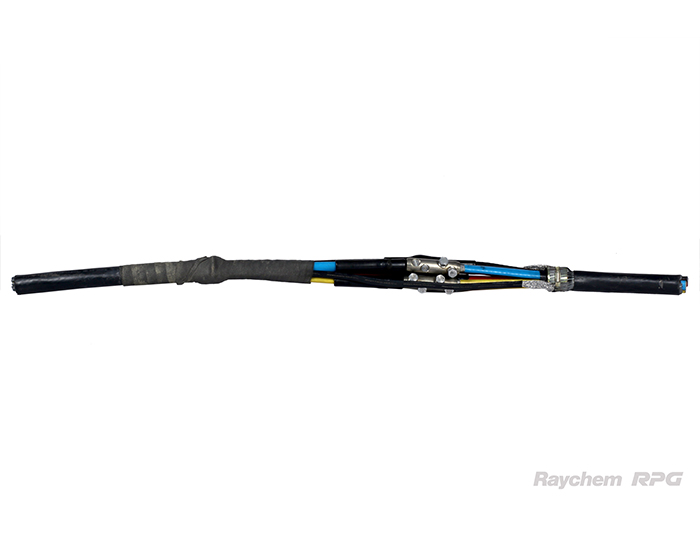

1.1kV Cold Applied Rayvolve Roll-on Joint. Rayvolve RVS jointing is the “roll-on” way to insulate and seal cable connections up to 1.1kV. The gripping force, of a specially formulated EPDM elastomer, combined with high-performance sealant forms a reliable and water-resistant insulating sleeve. The product is UL listed and CSA certified for direct burial applications.
- Rayvolve Sleeves have unlimited shelf life
- Quick, easy and tool free installation
- Protection against humidity and water
- UV resistant
- Type tested as per National and International standards
- more...
- Catalog
- Add to List
- Enquire Now
Please connect with us
Email Us epd@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
| Parameter |
|---|
| Tool Free installation |
| UV and Fungi resistant |
| Suitable for single and multi-core applications |
| Immediate energisation of joint after installation |
| Unlimited shelf life |
Technical Information
|
Sr. No. |
Particulars |
1.1 KV |
|---|---|---|
|
1. |
Rated Voltage of Cable accessories |
1.1 kV |
|
2. |
Applicable Standards |
IS: 13573- Part 1, 2011 / EN50393 |
|
3. |
Heating Cycle Test in Air |
Total cycle = 63 nos. |
|
a. Each cycle heating duration |
5 hours (maintain 2 hrs min as steady state) |
|
|
b. Temperature |
PVC - 75°C, XLPE - 95°C. |
|
|
c. Cooling Duration |
3 hours |
|
|
4. |
Heating Cycle Test in Water |
Total cycle = 63 nos. |
|
a. Each cycle heating duration |
5 hours (maintain 2 hrs min as steady state) |
|
|
b. Temperature |
PVC - 75°C, XLPE - 95°C. |
|
|
c. Cooling Duration |
3 hours |
|
|
5. |
Insulation Resistance Test (Water) |
50 MΩ (Min) |
|
Insulation Resistance Test (Air) |
50 MΩ (Min) |
|
|
6. |
Impact Test for Straight Joints (armoured cables) |
No damage |
|
7. |
A.C. Voltage Withstand (water) |
4 KV for 1 minute |
|
8. |
A.C. Voltage Withstand (Air) |
4 KV for 1 minute |
|
9. |
Thermal Short Circuit |
As per cable cross section and material of conductor |
|
10. |
Tubing Material |
Cold Applied (Roll-On Sleeve) Type |
|
11. |
Di-electric strength of insulating material |
10 kV/mm min |
Certifications
CPRI
More info available on request
ERDA
More info available on request
