![Heat Shrink Low Voltage Terminations](https://www.raychemrpg.com/assets/images/gallery/jO4L2DmhQGCFTvHhrd2PnjJztNDaZz.jpg)
![FullScreen](https://www.raychemrpg.com/assets/images/product-details/full-screen.png)
- Features
- Help & Support

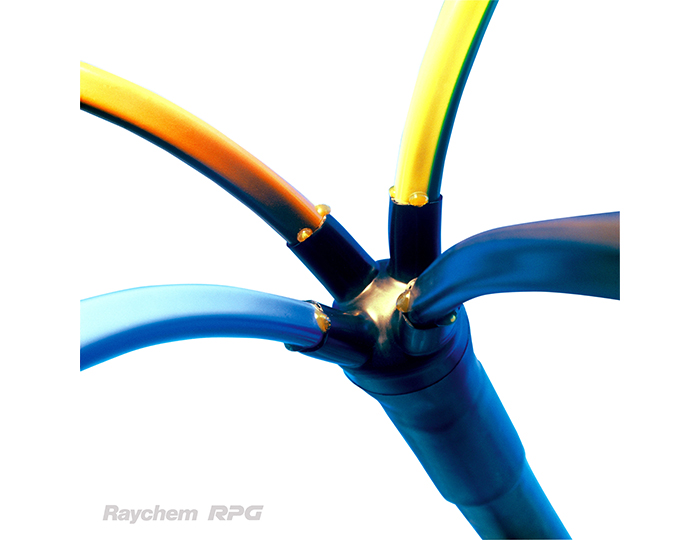

1.1kV Heat Shrink Termination. Low voltage cable crutch is sealed by an adhesive lined heat-shrinkable breakout installed over cores and end of over sheath. The heat-shrinkable tubing seals between the cable lug and end of core insulation. All materials are resistant to UV-light and weathering
- Heat Shrink technology
- Quick and easy Installation
- Solutions for all types of cable and constructions
- Hot melt adhesive coated cable breakout and sealing sleeves
- Fungi resistant
- more...
- Catalog
- Add to List
- Enquire Now
Please connect with us
Email Us epd@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
Parameter |
---|
High reliability and low skilled features with unlimited shelf life for heat shrink materials |
Suitable for wide range of crimp and mechanical connectors |
Suitable for single / multi core, armoured / unarmoured cables |
Suitable for indoor and outdoor applications |
Type tested as per National and International standards |
Technical Information
Sr. No. |
Particulars |
1.1 KV |
---|---|---|
1. |
Rated Voltage of Cable accessories |
1.1 kV |
2. |
Applicable Standards |
IS: 13573- Part 1, 2011 / EN50393 |
3. |
Heating Cycle Test in Air |
Total cycle = 63 nos. |
a. Each cycle heating duration |
5 hours (maintain 2 hrs min as steady state) |
|
b. Temperature |
PVC - 75°C, XLPE - 95°C. |
|
c. Cooling Duration |
3 hours |
|
4. |
Heating Cycle Test in Water |
Total cycle = 63 nos. |
a. Each cycle heating duration |
5 hours (maintain 2 hrs min as steady state) |
|
b. Temperature |
PVC - 75°C, XLPE - 95°C. |
|
c. Cooling Duration |
3 hours |
|
5. |
Insulation Resistance Test (Water) |
50 MΩ (Min) |
Insulation Resistance Test (Air) |
50 MΩ (Min) |
|
6. |
Impact Test for Straight Joints (armoured cables) |
No damage |
7. |
A.C. Voltage Withstand (Water) |
4 KV for 1 minute |
8. |
A.C. Voltage Withstand (Air) |
4 KV for 1 minute |
9. |
Thermal Short Circuit |
As per cable cross section and material of conductor |
10. |
Tubing Material |
Heat Shrinkable Type |
11. |
Di-electric strength of insulating material |
10 kV/mm min |
Certifications
![CPRI](https://www.raychemrpg.com/assets/images/products/Av4hv5hAU77Pf079wmvLEUka9gx2EK.jpg)
CPRI
More info available on request
![ERDA](https://www.raychemrpg.com/assets/images/products/wt9WWOZgHlxrmuLhl05wfPDW4KtXzx.jpg)
ERDA
More info available on request
