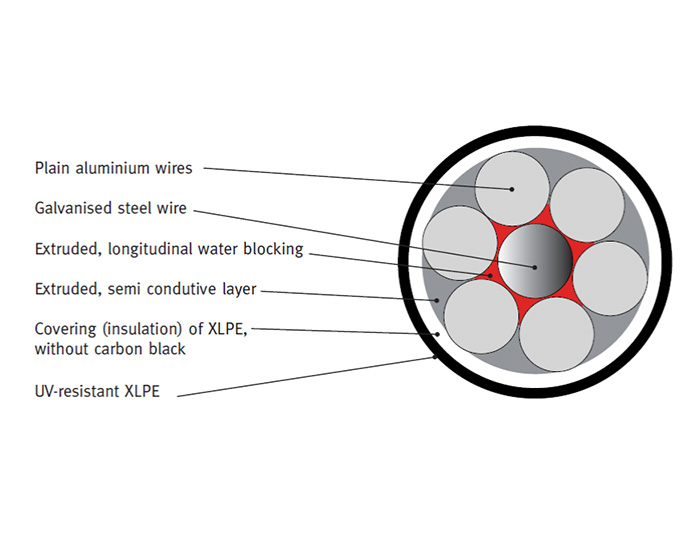

Improves reliability of power distribution & transmission lines and loss reduction in power utilities. Covered conductors are longitudinally water blocked and covered with special grade material that provides insulation and ultra violet protection. They provide safety against accidental contacts and reduce outages significantly.
- Longitudinal Water blocking
- Triple extruded
- UV resistant
- Catalog
- Add to List
- Enquire Now
Please connect with us
Email Us epd@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
| BENEFITS WITH COVERED CONDUCTORS |
|---|
| Protects the aluminum conductor from corrosion |
| Reducing faults caused by tree contacts and enhance the reliability |
| Reducing animal foults |
| Upgrade the voltage/current without changing the phase distance |
| Preventing bush fires |
| Lower life cycle cost compared with bare conductor |
| Reducing maintenance cost of tree trimming |
| Reducing clearance between phases, can cope with direct contact between phases |
| Less risk of sabotage |
| Environmental advantages |
Technical Information
| Sr. No | Description/Designation | Rating Available | Type | Area in Sq mm | |||||
|---|---|---|---|---|---|---|---|---|---|
| 11kV | 33kV | 66kV | 110kV | 132kV | AAAC | ACSR | |||
| 1 | CCSX 50 | Yes | Yes | Yes | 50 | ||||
| 2 | CCSX 70 | Yes | Yes | Yes | 70 | ||||
| 3 | CCSX 99 | Yes | Yes | Yes | Yes | Yes | Yes | Yes | 99 |
| 4 | CCSX 120 | Yes | Yes | Yes | Yes | Yes | Yes | Yes | 120 |
| 5 | CCSX 157 | Yes | Yes | Yes | Yes | Yes | Yes | Yes | 157 |
| 6 | CCSX 241 | Yes | Yes | Yes | Yes | Yes | Yes | Yes | 241 |
Certifications
CPRI
More info available on request
ERDA
More info available on request
