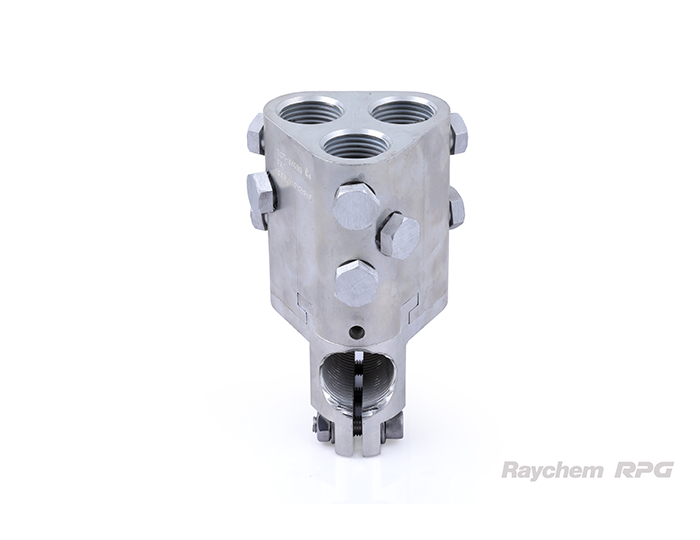

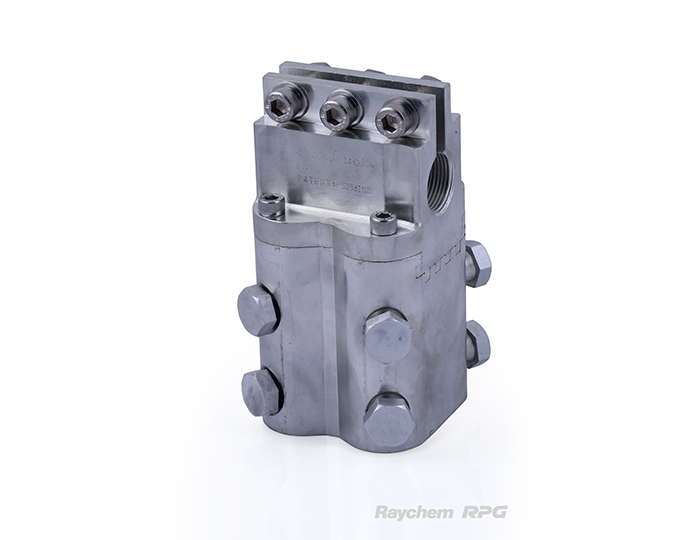

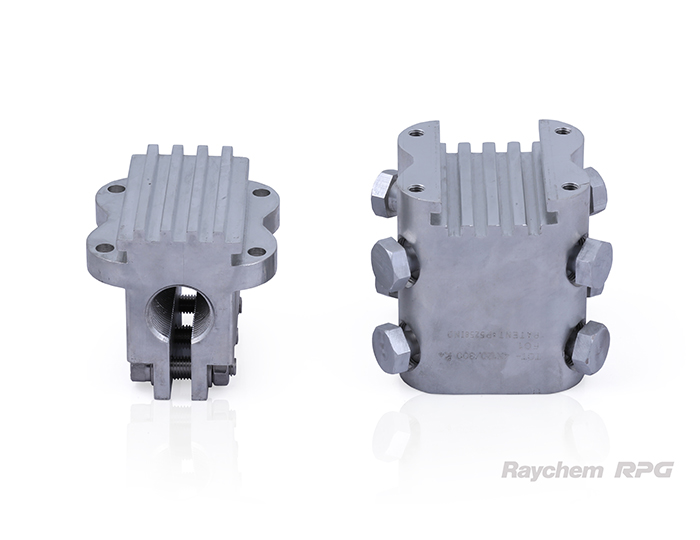

Trafoconnect engineered to keep the contact resistance low for the lifetime of a transformer and significantly increases its reliability. Light in weight and simple to install by using shear bolt technology, it avoids skill & tool dependent crimping methodology. Patented ‘Trafoconnect’ is engineered to keep contact resistance low for lifetime of transformers.
- Low IR (technical) losses
- No crimping
- Light weight
- Reliable, insulated & safe connection
- Simple & easy installation
- No chance of Ph-Ph, Ph-N & Ph-E faults
- more...
- Catalog
- Add to List
- Enquire Now
Email Us
Chat with UsSpecifications
| Parameter |
|---|
| Special Al alloy Parts |
| Two piece sliding design |
| Suitable for aluminium and copper conductors |
| Tested as per IS 5561 and IEC 61238 Standards |
| Torque controlled Shear-head bolts |
| Multiple cable outgoings |
| Range taking and compact |
| Fully insulated |
| Transformer kVA* | Current, A | Stud size | Stud position | Phase Outgoing no of ways | Neutral Outgoing no of ways | Cable cross-section sq.mm |
|---|---|---|---|---|---|---|
| 250 | 500 | M20x2.5 | Horizontal | 2 | 2 | 120-300 |
| 250 | 500 | M30x2 | Horizontal | 2 | 3 | 120-300 |
| 250 | 500 | M20x2.5 | Horizontal | 2 | 2 | 95-240 |
| 250 | 500 | M20x2.5 | Horizontal | 2 | 2 | 120-300 |
| 250 | 500 | M20x2.5 | Horizontal | 2 | 2 | 95-240 |
| 315 | 600 | M20x2.5 | Horizontal | 2 | 3 | 120-300 |
| 315 | 4000 | M20x2.5 | Horizontal | 1 | 1 | 400 |
| 400 | 630 | M20x2.5 | Horizontal | 2 | 2 | 400 |
| 630 | 1000 | M30x2 | Horizontal | 3 | 3 | 120-300 |
| 630 | 1000 | M30x2 | Horizontal | 3 | 3 | 400 |
| 630 | 1300 | M30x2 | Horizontal | 2 | 2 | 630 |
| 630 | 1300 | M30x2 | Horizontal | 2 | 3 | 400 |
| 630 | 1300 | M42x3 | Horizontal | 2 | 2 | 630 |
| 630 | 1000 | M30x2 | Horizontal | 3 | 4 | 120-300 |
| 630 | 1000 | M42x3 | Horizontal | 3 | 3 | 400 |
| 750 | 1000 | M30x2 | Horizontal | 3 | 4 | 400 |
| 990 | 2000 | M42x3 | Horizontal | 3 | 3 | 630 |
| 990 | 2000 | M42x3 | Vertical | 3 | 3 | 630 |
| 990 | 2000 | M42x3 | Horizontal | 4 | 4 | 400 |
| 990 | 2000 | M42x3 | Horizontal | 4 | 4 | 500 |
| 2000 | 4000 | Busbar | Horizontal | 12 | - | 300 |
| Selection Chart: *kVA rating is mentioned for selection of Trafoconnect and for reference only. **Other combinations on request | ||||||
Technical Information
|
SL. No. |
Description |
Value Guaranteed by the Bidder |
|---|---|---|
|
1. |
Suitability |
Distribution Transformers |
|
2. |
Reference standards |
Tested as per IS 5561 and IEC 61238 |
|
3. |
Components offered |
Trafo-connector Body |
| 4. |
Reference standards |
Shear-head bolts |
| 5. |
Components offered
|
Insulation cover |
|
Breakout |
||
|
Standard fasteners |
||
|
Neutral connection |
Certifications
ERDA
More info available on request
TISCON
More info available on request
