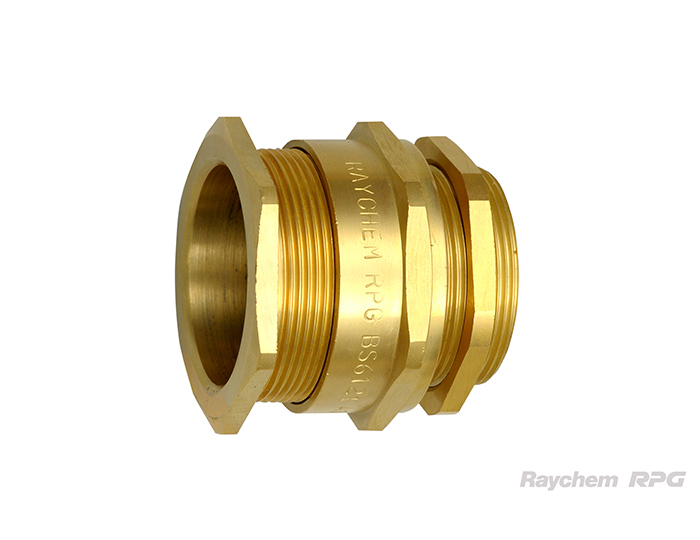

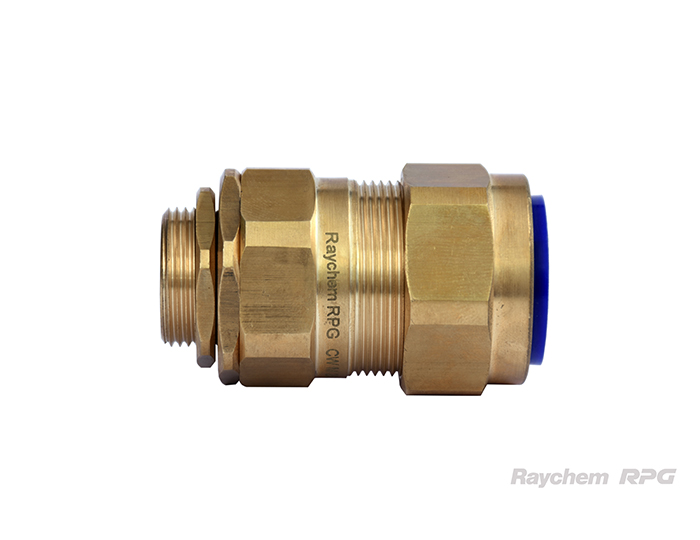

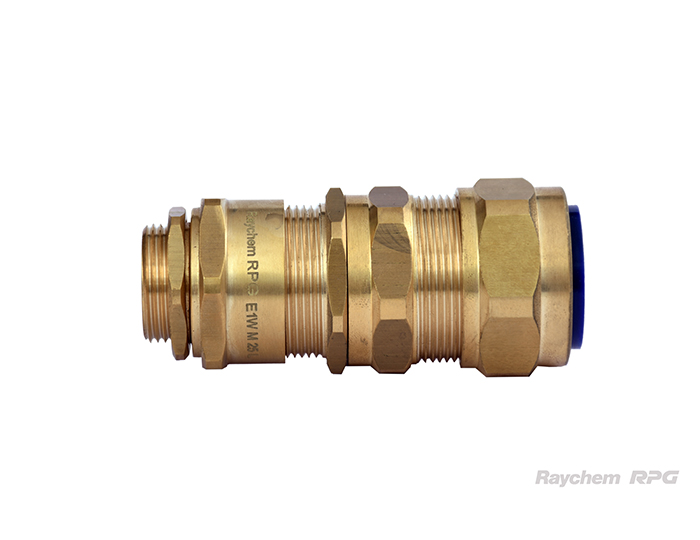

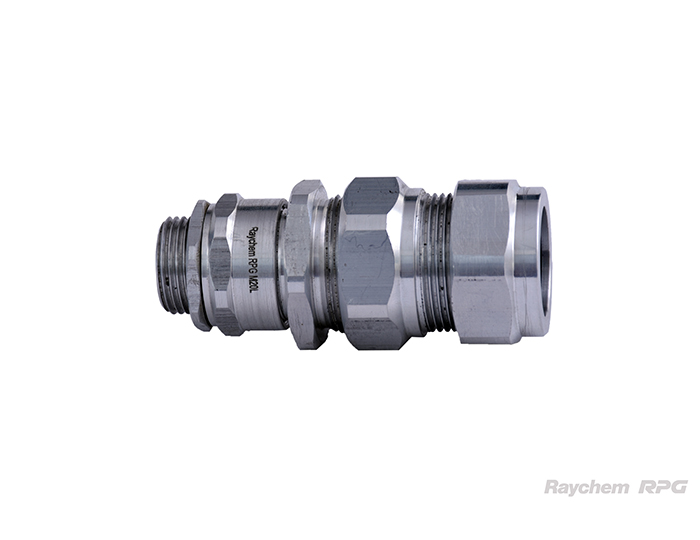

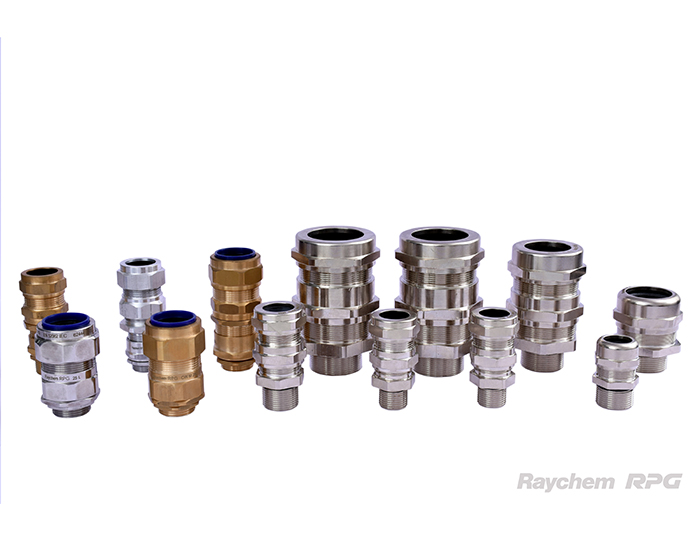

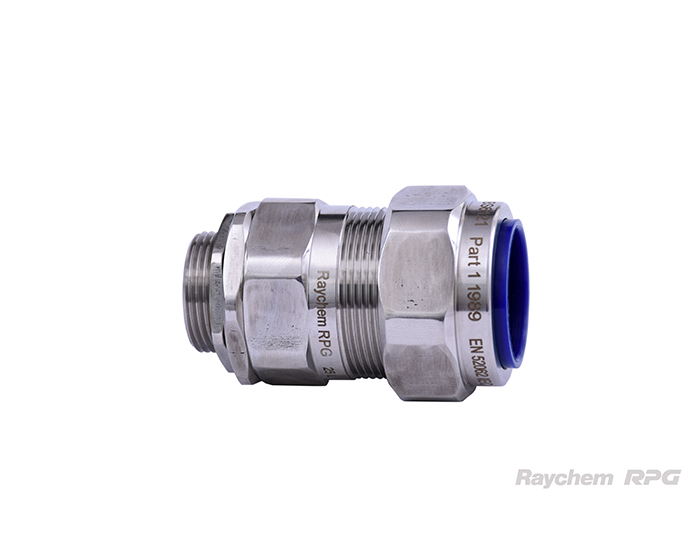

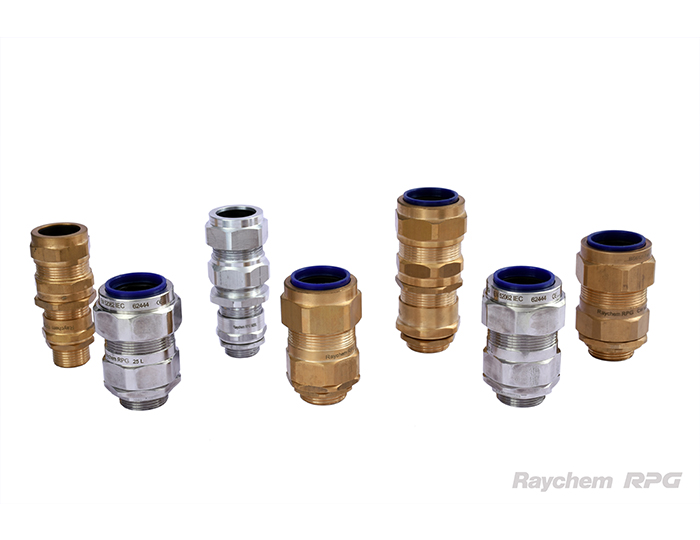

Metallic cable glands with varied sealing systems to suit industrial application and tested as per Standard BS 6387:2013
- Raychem RPG Cable glands are designed for use with all types of electrical power, control, instrumentation, data telecommunications cables and fire rated cables.
- They are used as a sealing and termination device to ensure the characteristics of the enclosure in which the cable enters is maintained adequately.
- Catalog
- Add to List
- Enquire Now
Chat with UsSpecifications
| RSU: |
|---|
| Suitable for use in industrial (safe) areas with unarmoured cable |
| Superior cable retention and strain relief |
| Minimum temperature rating up to -50°C |
| Maximum temperature up to +135°C |
| Wide cable range of cable glands |
| Material - Brass/Nickel plated |
| RSA: |
|---|
| Superior cable retention and strain relief |
| Single compression seal |
| Minimum temperature rating up to -50°C |
| Maximum temperature up to +135°C |
| Wide cable range of cable glands |
| Material - Brass/Nickel plated |
| RDA: |
|---|
| Superior cable retention and strain relief |
| Single compression seal |
| Minimum temperature rating up to -50°C |
| Maximum temperature up to +135°C |
| Wide cable range of cable glands |
| Material - Brass/Nickel plated |
Instructions ManualTechnical Information
|
RSU : SINGLE SEAL CABLE GLANDS FOR UNARMOURED CABLES |
||
|---|---|---|
|
Parameters |
RSU |
|
|
RAW MATERIAL |
Brass/Nickel plated brass/Stainless steel/ Aluminium |
|
|
IP (IEC 60529) |
IP 66 |
|
|
Mechanical Specifications |
Cable Anchorage |
Class B |
|
Impact Category |
CATEGORY 8 |
|
|
Service Temperature |
Neoprene: -40°C to 100°C |
|
|
Seal |
Single seal |
|
|
Accessories |
Shrouds/locknuts/earth tags |
|
|
Cable type |
Unarmoured |
|
|
No. of Sealing |
Size |
Material |
Sealing material |
Code example |
|||
|---|---|---|---|---|---|---|---|
|
RSU |
XXXX |
BR |
NI |
SS |
SI |
NI |
|
|
RSU |
Metric: MXXX |
Brass |
Nickel Plated |
Stainless |
Silicon |
Neoprene |
RSUM20SBRN |
|
METRIC |
||||||
|---|---|---|---|---|---|---|
|
Thread Type |
RSU Cable Gland Code |
Clamping range min-max |
Cable Gland Dimensions |
|||
|
D mm |
H min |
TL min |
SW |
D2 |
||
|
M20x1.5 |
RSUM20S |
3.2 - 8.7 |
22.0 |
10.0 |
22.0 |
24.0 |
|
M20x1.5 |
RSUM2OM |
6.1 - 11.7 |
22.0 |
10.0 |
22.0 |
24.0 |
|
M20x1.5 |
RSUM2OL |
6.5 -14.0 |
30.0 |
10.0 |
30.0 |
35.0 |
|
M25x1.5 |
RSUM25L |
11.1 -20.0 |
35.0 |
10.0 |
35.0 |
38.5 |
|
M32x1.5 |
RSUM32L |
17.0 - 26.3 |
35.0 |
10.0 |
40.0 |
44.0 |
|
M40x1.5 |
RSUM40L |
23.5- 32.2 |
38.0 |
15.0 |
50.0 |
53.0 |
|
M50x1.5 |
RSUM50S |
31 - 38.2 |
38.0 |
15.0 |
55.0 |
60.0 |
|
M50x1.5 |
RSUM50L |
35.6 -44.0 |
40.0 |
15.0 |
60.5 |
65.0 |
|
M63x1.5 |
RSUM63S |
41.5 - 49.9 |
40.0 |
15.0 |
66.0 |
73.5 |
|
M63x1.5 |
RSUM63L |
47.2 -55.9 |
40.0 |
15.0 |
71.0 |
78.0 |
|
M75x1.5 |
RSUM75S |
54.0 - 61.9 |
42.0 |
15.0 |
80.0 |
87.0 |
|
M75x1.5 |
RSUM75L |
61.1-67.9 |
42.0 |
15.0 |
85.0 |
92.0 |
|
M90x1.5 |
RSUM90L |
66.6 - 79.9 |
45.0 |
24.0 |
108.0 |
118.0 |
|
M100x1.5 |
RSUM100L |
76.0 -91.0 |
55.0 |
24.0 |
123.0 |
135.0 |
|
NPT |
||||||
|
Thread Type |
RSU Cable Gland Code |
Clamping range min-max |
Cable Gland Dimensions |
|||
|---|---|---|---|---|---|---|
|
D mm |
H min |
TL min |
SW |
D2 |
||
|
NPT1/2" |
RSUN12S |
3.2 - 8.7 |
22.0 |
20.0 |
22.0 |
24.0 |
|
NPT1/2" |
RSUN12M |
6.1 - 11.7 |
22.0 |
20.0 |
22.0 |
24.0 |
|
NPT1/2" |
RSUN12L |
6.5 -14.0 |
30.0 |
20.0 |
30.0 |
35.0 |
|
NPT3/4" |
RSUN34L |
11.1 -20.0 |
35.0 |
20.0 |
35.0 |
38.5 |
|
NPT1" |
RSUN01L |
17.0 - 26.3 |
35.0 |
25.0 |
40.0 |
44.0 |
|
NPT1 1/4" |
RSUN114L |
23.5- 32.2 |
38.0 |
27.0 |
50.0 |
53.0 |
|
NPT1 1/2" |
RSUN112L |
31 - 38.2 |
38.0 |
27.0 |
55.0 |
60.0 |
|
NPT2" |
RSU N02S |
35.6 -44.0 |
40.0 |
27.0 |
60.5 |
65.0 |
|
NPT2" |
RSUN02L |
41.5 - 49.9 |
40.0 |
27.0 |
66.0 |
73.5 |
|
NPT2 1/2" |
RSUN212S |
47.2 -55.9 |
40.0 |
27.0 |
71.0 |
78.0 |
|
NPT2 1/2" |
RSUN212L |
54.0 - 61.9 |
42.0 |
35.0 |
80.0 |
87.0 |
|
NPT3" |
RSUN03L |
61.1-67.9 |
42.0 |
35.0 |
85.0 |
92.0 |
|
NPT3 1/2" |
RSUN312L |
66.6 - 79.9 |
45.0 |
35.0 |
108.0 |
118.0 |
|
NPT4" |
RSUN04L |
76.0 -91.0 |
55.0 |
40.0 |
123.0 |
135.0 |
|
*For Fire rated cable glands, part code needs to be – RRPL FR RSU XXXX; XXXX – size of cable gland (refer size table) |
||||||
|
RSA |
||
|---|---|---|
|
Parameters |
RSA |
|
|
RAW MATERIAL |
Brass/Nickel plated brass/Stainless steel/ Aluminium |
|
|
IP (IEC 60529) |
IP 66 |
|
|
Mechanical Specifications |
Cable Anchorage |
Class D |
|
Impact Category |
CATEGORY 8 |
|
|
Service Temperature |
Neoprene: -40°C to 100°C |
|
|
Seal |
Single seal |
|
|
Accessories |
Shrouds/locknuts/earth tags |
|
|
Cable type |
Armoured -SWA(steel wire armoured) -AWA(aluminium wire armoured) |
|
|
No. of Sealing |
Size |
Material |
Sealing material |
Code example |
|||
|---|---|---|---|---|---|---|---|
|
RSA |
XXXX |
BR |
NI |
SS |
SI |
NI |
|
|
RSA |
Metric: MXXX |
Brass |
Nickel Plated |
Stainless |
Silicon |
Neoprene |
RSAM20SBRN |
|
METRIC |
||||||||
|---|---|---|---|---|---|---|---|---|
|
Thread Type |
RSA Cable Gland Code |
Clamping range min-max |
Cable Gland Dimensions |
Armour Range min-max (mm) |
||||
|
D mm |
H min |
TL min |
SW |
D |
D2 |
|||
|
M20x1.5 |
RSAM20S |
6.1-13.1 |
48.0 |
10.0 |
24.0 |
8.7 |
26.5 |
0.8-1.25 |
|
M20x1.5 |
RSAM20M |
9.5-15.9 |
48.0 |
10.0 |
24.0 |
11.7 |
26.5 |
0.8-1.25 |
|
M20x1.5 |
RSAM20L |
12.5-20.9 |
48.0 |
10.0 |
30.0 |
14.0 |
33.0 |
0.8-1.25 |
|
M25x1.5 |
RSAM25S |
14.0-22.0 |
56.0 |
10.0 |
38.0 |
20.0 |
41.5 |
1.25-1.6 |
|
M25x1.5 |
RSAM25L |
18.2-26.2 |
56.0 |
10.0 |
38.0 |
20.0 |
41.5 |
1.25-1.6 |
|
M32x1.5 |
RSAM32L |
23.7-33.9 |
54.0 |
10.0 |
46.0 |
26.0 |
50.5 |
1.6-2 |
|
M40x1.5 |
RSAM40L |
27.9-40.4 |
58.0 |
15.0 |
55.0 |
32.2 |
60.0 |
1.6-2 |
|
M50x1.5 |
RSAM50S |
35.2-46.7 |
61.0 |
15.0 |
60.0 |
38.2 |
66.0 |
2-2.5 |
|
M50x1.5 |
RSAM50L |
40.4-53.0 |
60.0 |
15.0 |
70.0 |
44.1 |
75.0 |
2-2.5 |
|
M63x1.5 |
RSAM63S |
45.6-59.4 |
74.0 |
15.0 |
75.0 |
50.0 |
82.0 |
2-2.5 |
|
M63x1.5 |
RSAM63L |
54.6-65.8 |
71.0 |
15.0 |
80.0 |
56.0 |
86.0 |
2-2.5 |
|
M75x1.5 |
RSAM75S |
59.0-72.0 |
86.0 |
15.0 |
90.0 |
62.0 |
98.0 |
2-2.5 |
|
M75x1.5 |
RSAM75L |
66.7-78.4 |
82.0 |
15.0 |
98.0 |
64.2 |
106.0 |
2.5-3 |
|
M90x1.5 |
RSAM90L |
76.2-90.3 |
95.0 |
24.0 |
114.0 |
78.6 |
125.0 |
3.15-4 |
|
M100x1.5 |
RSAM100L |
86.1-101.4 |
95.0 |
24.0 |
123.0 |
91.0 |
135.0 |
3.15-4 |
|
NPT |
||||||||
|---|---|---|---|---|---|---|---|---|
|
Thread Type |
RSA Cable Gland Code |
Clamping range min-max |
Cable Gland Dimensions |
Armour Range min-max (mm) |
||||
|
D mm |
H min |
TL min |
SW |
D |
D2 |
|||
|
NPT1/2" |
RSAN12S |
6.1-13.1 |
48.0 |
24.0 |
24.0 |
8.7 |
26.5 |
0.8-1.25 |
|
NPT1/2" |
RSAN12S M |
9.5-15.9 |
48.0 |
20.0 |
24.0 |
11.7 |
26.5 |
0.8-1.25 |
|
NPT1/2" |
RSAN12S L |
12.5-20.9 |
48.0 |
20.0 |
30.0 |
14.0 |
33.0 |
0.8-1.25 |
|
NPT3/4" |
RSAN34S |
14.0-22.0 |
56.0 |
20.0 |
38.0 |
20.0 |
41.5 |
1.25-1.6 |
|
NPT3/4" |
RSAN34SL |
18.2-26.2 |
56.0 |
20.0 |
38.0 |
20.0 |
41.5 |
1.25-1.6 |
|
NPT1" |
RSAN01L |
23.7-33.9 |
54.0 |
20.0 |
46.0 |
26.0 |
50.5 |
1.6-2 |
|
NPT1 1/4" |
RSAN114L |
27.9-40.4 |
58.0 |
25.0 |
55.0 |
32.2 |
60.0 |
1.6-2 |
|
NPT1 1/2" |
RSAN112S |
35.2-46.7 |
61.0 |
27.0 |
60.0 |
38.2 |
66.0 |
2-2.5 |
|
NPT2" |
RSAN02S |
40.4-53.0 |
60.0 |
27.0 |
70.0 |
44.1 |
75.0 |
2-2.5 |
|
NPT2" |
RSAN02L |
45.6-59.4 |
74.0 |
27.0 |
75.0 |
50.0 |
82.0 |
2-2.5 |
|
NPT2 1/2" |
RSAN212S |
54.6-65.8 |
71.0 |
27.0 |
80.0 |
56.0 |
86.0 |
2-2.5 |
|
NPT2 1/2" |
RSAN212L |
59.0-72.0 |
86.0 |
27.0 |
90.0 |
62.0 |
98.0 |
2-2.5 |
|
NPT3" |
RSAN03L |
66.7-78.4 |
82.0 |
35.0 |
98.0 |
64.2 |
106.0 |
2.5-3 |
|
NPT3 1/2" |
RSAN312L |
76.2-90.3 |
95.0 |
35.0 |
114.0 |
78.6 |
125.0 |
3.15-4 |
|
NPT4" |
RSAN04L |
86.1-101.4 |
95.0 |
40.0 |
123.0 |
91.0 |
135.0 |
3.15-4 |
|
*For Fire rated cable glands, part code needs to be – RRPL FR RSA XXXX ; XXXX – size of cable gland (refer size table) |
||||||||
|
RDA |
||
|---|---|---|
|
Parameters |
RDA |
|
|
RAW MATERIAL |
Brass/Nickel plated brass/Stainless steel/ Aluminium |
|
|
IP (IEC 60529) |
IP 66 |
|
|
Mechanical Specifications |
Cable Anchorage |
Class D |
|
Impact Category |
CATEGORY 8 |
|
|
Service Temperature |
Neoprene: -40°C to 100°C |
|
|
Seal |
Double seal |
|
|
Accessories |
Shrouds/locknuts/earth tags |
|
|
Cable type |
Armoured -SWA(steel wire armoured) -AWA(aluminium wire armoured) |
|
|
No. of Sealing |
Size |
Material |
Sealing material |
Code example |
|||||
|---|---|---|---|---|---|---|---|---|---|
|
RDA |
XXXX |
BR |
NI |
SS |
SI |
NI |
|||
|
RDA |
Metric: MXXX |
Brass |
Nickel Plated |
Stainless |
Silicon |
Neoprene |
RDAM20SBRN |
||
|
METRIC |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Thread Type |
RDA Cable Gland Code |
Clamping range min-max |
Cable Gland Dimensions |
Armour Range min-max (mm) |
||||||
|
D mm |
D1 mm |
H min |
TL min |
SW |
D2 |
|||||
|
M20x1.5 |
RDAM2OS |
3.1 - 8.5 |
6.1 - 13.0 |
64.0 |
10.0 |
24.0 |
26.5 |
0.7-1.2 |
||
|
M20x1.5 |
RDAM2OM |
6.1 - 11.7 |
9.5 - 15.8 |
64.0 |
10.0 |
24.0 |
26.5 |
0.7-1.2 |
||
|
M20x1.5 |
RDAM2OL |
6.5 - 14.0 |
12.5 - 20.0 |
66.0 |
10.0 |
30.0 |
33.0 |
0.7-1.2 |
||
|
M25x1.5 |
RDAM25S |
11.0 -20.0 |
14.0 -21.9 |
80.0 |
10.0 |
38.0 |
41.5 |
1.25-1.6 |
||
|
M25x1.5 |
RDAM25L |
17.0 - 26.0 |
18.3 - 25.2 |
80.0 |
10.0 |
38.0 |
41.5 |
1.25-1.6 |
||
|
M32x1.5 |
RDAM32L |
22.0 -32.2 |
23.8 -33.0 |
84.0 |
10.0 |
46.0 |
50.5 |
1.6-2.0 |
||
|
M40x1.5 |
RDAM40L |
29.5 - 38.0 |
28.0 - 40.0 |
85.0 |
15.0 |
55.0 |
60.0 |
1.6-2.0 |
||
|
M50x1.5 |
RDAM50S |
35.5 -44.0 |
35.2 -46.0 |
85.0 |
15.0 |
60.0 |
66.0 |
2.0-2.5 |
||
|
M50x1.5 |
RDAM50L |
40.0 - 50.0 |
40.5- 52.5 |
90.0 |
15.0 |
70.0 |
75.0 |
2.0-2.5 |
||
|
M63x1.5 |
RDAM63S |
47.5 -55.8 |
45.7 -59.0 |
90.0 |
15.0 |
75.0 |
82.0 |
2.0-2.5 |
||
|
M63x1.5 |
RDAM63L |
53.0 - 62.0 |
54.7 - 65.0 |
95.0 |
15.0 |
80.0 |
86.0 |
2.0-2.5 |
||
|
M75x1.5 |
RDAM75S |
59.0 -64.0 |
59.0 -71.5 |
100.0 |
15.0 |
90.0 |
98.0 |
2.0-2.5 |
||
|
M75x1.5 |
RDAM75L |
66.5 - 78.5 |
66.8 - 78.0 |
108.0 |
15.0 |
98.0 |
106.0 |
2.5-3.0 |
||
|
M90x1.5 |
RDAM90L |
76.0 -90.0 |
76.2 -90.0 |
140.0 |
24.0 |
114.0 |
125.0 |
3.15-4.0 |
||
|
M100x1.5 |
RDAM100L |
76.0 - 90.0 |
86.5 - 101.0 |
140.0 |
24.0 |
123.0 |
135.0 |
3.15-4.0 |
||
|
M90x1.5 |
RDAM90L |
76.0 -90.0 |
76.2 -90.0 |
140.0 |
24.0 |
114.0 |
125.0 |
3.15-4.0 |
||
|
M100x1.5 |
RDAM100L |
76.0 - 90.0 |
86.5 - 101.0 |
140.0 |
24.0 |
123.0 |
135.0 |
3.15-4.0 |
||
|
NPT |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Thread Type |
RDA Cable Gland Code |
Clamping range min-max |
Cable Gland Dimensions |
Armour Range min-max (mm) |
|||||
|
D mm |
D1 mm (min-max) |
H min |
TL min (mm) |
SW (mm) |
D2 (mm) |
||||
|
NPT1/2" |
RDAN12S |
3.1 - 8.5 |
6.1 - 13.0 |
64.0 |
20.0 |
24.0 |
26.5 |
0.7-1.2 |
|
|
NPT1/2" |
RDAN12M |
6.1 - 11.7 |
9.5 - 15.8 |
64.0 |
20.0 |
24.0 |
26.5 |
0.7-1.2 |
|
|
NPT1/2" |
RDAN12L |
6.5 - 14.0 |
12.5 - 20.0 |
66.0 |
20.0 |
30.0 |
33.0 |
0.7-1.2 |
|
|
NPT3/4" |
RDAN34S |
11.0 -20.0 |
14.0 -21.9 |
80.0 |
20.0 |
38.0 |
41.5 |
1.25-1.6 |
|
|
NPT3/4" |
RDAN34L |
17.0 - 26.0 |
18.3 - 25.2 |
80.0 |
20.0 |
38.0 |
41.5 |
1.25-1.6 |
|
|
NPT1" |
RDAN01L |
22.0 -32.2 |
23.8 -33.0 |
84.0 |
25.0 |
46.0 |
50.5 |
1.6-2.0 |
|
|
NPT1 1/4" |
RDAN114L |
29.5 - 38.0 |
28.0 - 40.0 |
85.0 |
27.0 |
55.0 |
60.0 |
1.6-2.0 |
|
|
NPT1 1/2" |
RDAN112S |
35.5 -44.0 |
35.2 -46.0 |
85.0 |
27.0 |
60.0 |
66.0 |
2.0-2.5 |
|
|
NPT2" |
RDAN112L |
40.0 - 50.0 |
40.5- 52.5 |
90.0 |
27.0 |
70.0 |
75.0 |
2.0-2.5 |
|
|
NPT2" |
RDAN02S |
47.5 -55.8 |
45.7 -59.0 |
90.0 |
27.0 |
75.0 |
82.0 |
2.0-2.5 |
|
|
NPT2 1/2" |
RDAN02L |
53.0 - 62.0 |
54.7 - 65.0 |
95.0 |
27.0 |
80.0 |
86.0 |
2.0-2.5 |
|
|
NPT2 1/2" |
RDAN212S |
59.0 -64.0 |
59.0 -71.5 |
100.0 |
35.0 |
90.0 |
98.0 |
2.0-2.5 |
|
|
NPT3" |
RDAN212L |
66.5 - 78.5 |
66.8 - 78.0 |
108.0 |
35.0 |
98.0 |
106.0 |
2.5-3.0 |
|
|
NPT3 1/2" |
RDAN03L |
76.0 -90.0 |
76.2 -90.0 |
140.0 |
35.0 |
114.0 |
125.0 |
3.15-4.0 |
|
|
NPT4" |
RDAN04L |
76.0 - 90.0 |
86.5 - 101.0 |
140.0 |
40.0 |
123.0 |
135.0 |
3.15-4.0 |
|
|
*For Fire rated cable glands, part code needs to be – RRPL FR RDA XXXX XXXX – size of cable gland (refer size table) |
|||||||||
Related Products
All products provided below with slider to find faster.
/
Customizable
Category A
Metallic cable glands with varied sealing systems to suit industrial application and tested as per S...
Learn More
Customizable
Euro Series Cable Glands
Single compression metal cable glands for unarmoured cables with IP 68. Euro Series cable glands of...
Learn More
