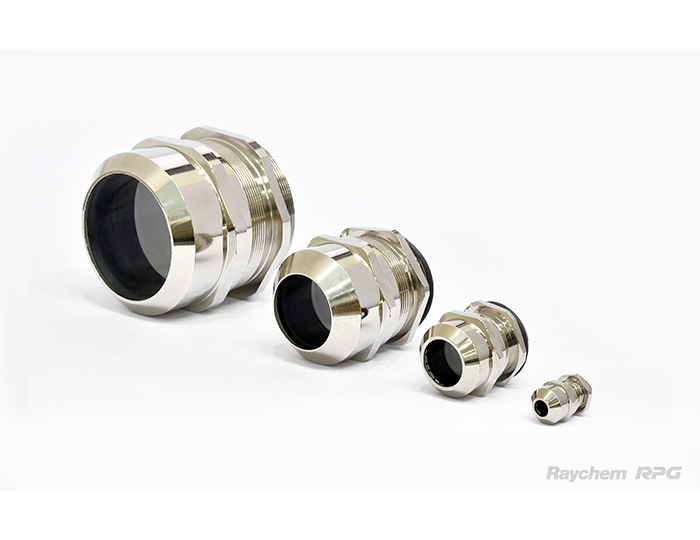

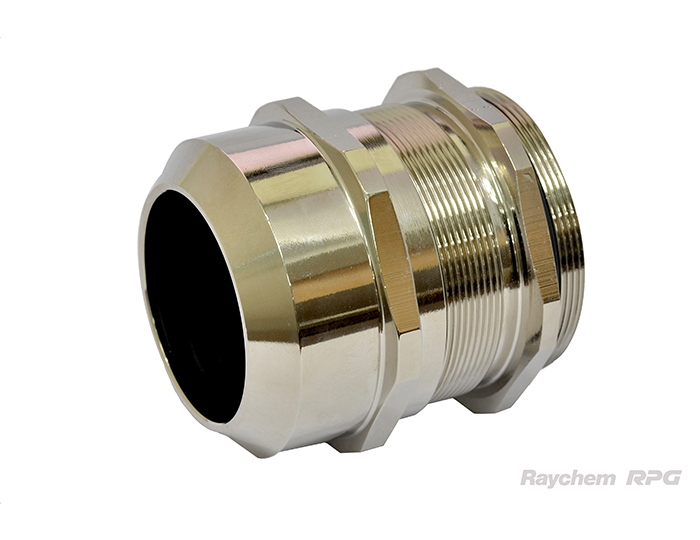

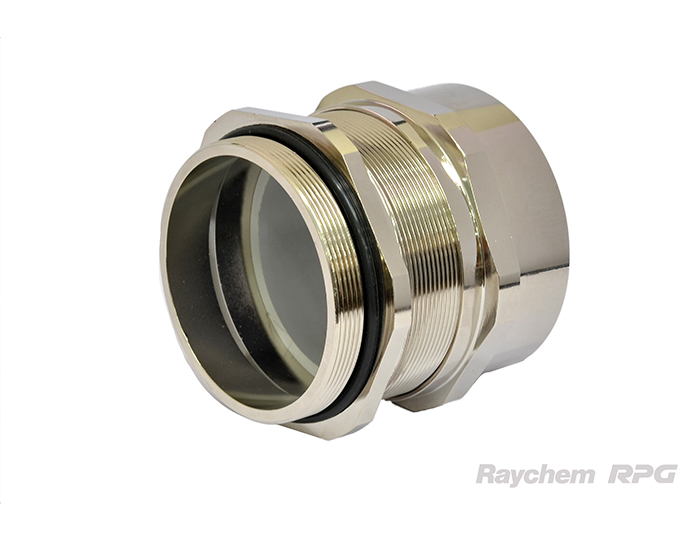

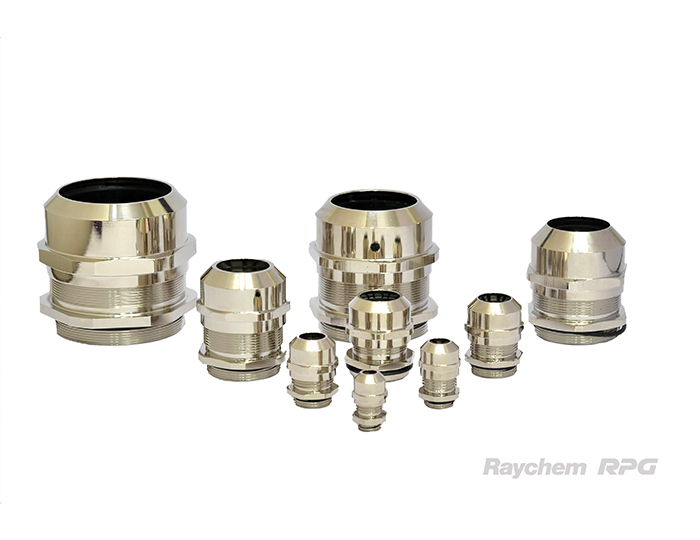

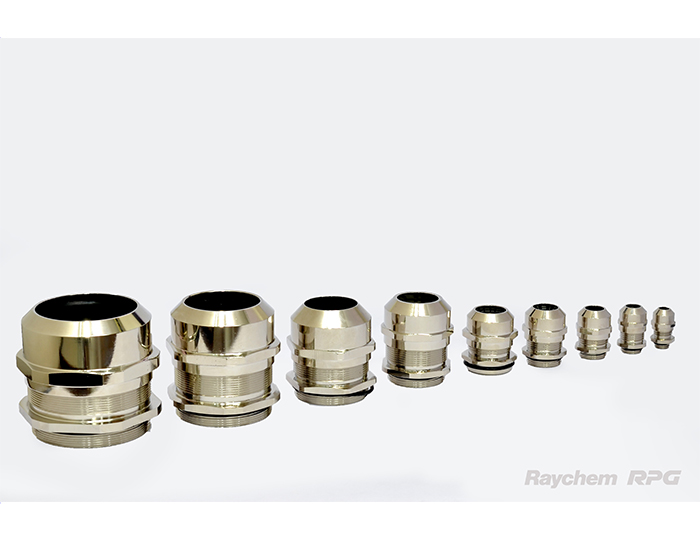

Single compression metal cable glands for unarmoured cables with IP 68. Euro Series cable glands offer exceptional strain relief, a key requirement in electrical and instrumentation industries. Developed using twin-shot production technique, these glands represent an entirely new and smart design. Having a width of only 22mm, euro series cable glands are extremely compact and easy to use.
- Suitable for use in industrial (safe) areas with unarmoured cable
- Superior cable retention and strain relief
- Minimum temperature rating up to -50°C
- Maximum temperature up to +135°C
- Certified to IEC 62444 and EN 62444 and BS 6387:2013 Standards
- Wide cable range of cable glands
- Material - Brass/Nickel plated
- more...
- Catalog
- Add to List
- Enquire Now
Chat with UsSpecifications
|
SHORT THREAD |
||||||
|---|---|---|---|---|---|---|
|
Part Codes |
Entry Thread M |
Entry thread Length D (mm) |
Clamping Range (mm) |
Installation Torque (Nm) |
Across Flat AF (mm) |
Total Length C (mm) |
|
RESM-12 |
M12 x 1.5 |
5 |
3.0-7.0 |
4 |
16 |
23-30 |
|
RESM-16 |
M16 x 1.5 |
5 |
4.5-10.0 |
4 |
20 |
26-34 |
|
RESM-20 |
M20 x 1.5 |
6 |
6.0-13.0 |
8 |
24 |
29-37 |
|
RESM-25 |
M25 x 1.5 |
7 |
9.0-16.0 |
10 |
29 |
33-42 |
|
RESM-32 |
M32 x 1.5 |
8 |
13.0-21.0 |
20 |
36 |
36-44 |
|
RESM-40 |
M40 x 1.5 |
8 |
16.0-28.0 |
20 |
46 |
44-55 |
|
RESM-50 |
M50 x 1.5 |
9 |
21.0-35.0 |
30 |
55 |
51-62 |
|
RESM-63 |
M63 x 1.5 |
10 |
34.0-48.0 |
40 |
68 |
56-67 |
|
RESM-75 |
M75 x 1.5 |
12 |
48.0-62.0 |
40 |
82 |
67-81 |
|
LONG THREAD |
||||||
|---|---|---|---|---|---|---|
|
Part Codes |
Entry Thread M |
Entry thread Length D (mm) |
Clamping Range (mm) |
Installation Torque (Nm) |
Across Flat AF (mm) |
Total Length C (mm) |
|
RESM-12-L |
M12 x 1.5 |
15 |
3.0-7.0 |
4 |
16 |
30-37 |
|
RESM-16-L |
M16 x 1.5 |
15 |
4.5-10.0 |
4 |
20 |
33-41 |
|
RESM-20-L |
M20 x 1.5 |
15 |
6.0-13.0 |
8 |
24 |
35-43 |
|
RESM-25-L |
M25 x 1.5 |
15 |
9.0-16.0 |
10 |
29 |
38-47 |
|
RESM-32-L |
M32 x 1.5 |
15 |
13.0-21.0 |
20 |
36 |
43-51 |
|
RESM-40-L |
M40 x 1.5 |
15 |
16.0-28.0 |
20 |
46 |
51-62 |
|
RESM-50-L |
M50 x 1.5 |
15 |
21.0-35.0 |
30 |
55 |
57-68 |
|
RESM-63-L |
M63 x 1.5 |
15 |
34.0-48.0 |
40 |
68 |
61-72 |
|
PG THREAD |
||||||
|---|---|---|---|---|---|---|
|
Part Codes |
Entry Thread M |
Entry thread Length D (mm) |
Clamping Range (mm) |
Installation Torque (Nm) |
Across Flat AF (mm) |
Total Length C (mm) |
|
RESP-7-12 |
PG7 |
5 |
3.0-7.0 |
4 |
16 |
23-30 |
|
RESP-9-16 |
PG9 |
5 |
4.5-10.0 |
4 |
20 |
26-34 |
|
RESP-11-16 |
PG11 |
6 |
4.5-10.0 |
4 |
22 |
27-35 |
|
RESP-13.5-20 |
PG13.5 |
6 |
6.0-13.0 |
8 |
24 |
28-36 |
|
RESP-16-25 |
PG16 |
6 |
9.0-16.0 |
10 |
29 |
32-41 |
|
RESP-21-25 |
PG21 |
7 |
9.0-16.0 |
20 |
36 |
33-42 |
|
RESP-29-40 |
PG29 |
8 |
16.0-28.0 |
20 |
46 |
44-55 |
|
RESP-36-50 |
PG36 |
9 |
21.0-35.0 |
30 |
55 |
51-62 |
|
RESP-42-50 |
PG 42 |
10 |
21.0-35.0 |
40 |
60 |
52-63 |
|
RESP-48-63 |
PG 48 |
10 |
34.0-48.0 |
40 |
68 |
56-67 |
|
NPT THREAD |
||||||
|---|---|---|---|---|---|---|
|
Part Codes |
Entry Thread M |
Entry thread Length D (mm) |
Clamping Range (mm) |
Installation Torque (Nm) |
Across Flat AF (mm) |
Total Length C (mm) |
|
RESN-1/4 |
NPT 1/4" |
13 |
3.0-7.0 |
4 |
16 |
33-40 |
|
RESN-3/8 |
NPT 3/8" |
13 |
4.5-10.0 |
4 |
20 |
35-42 |
|
RESN-1/2 |
NPT 1/2" |
16 |
6.0-13.0 |
8 |
24 |
38-45 |
|
RESN-3/4 |
NPT 3/4" |
16 |
9.0-16.0 |
10 |
29 |
40-48 |
|
RESN-1 |
NPT 1" |
20 |
13.0-21.0 |
20 |
36 |
46-53 |
|
RESN-1 ¼ |
NPT 1 1/4" |
20 |
16.0-28.0 |
20 |
46 |
50-58 |
|
RESN-1 ½ |
NPT 1 1/2" |
20 |
21.0-35.0 |
30 |
55 |
51-62 |
|
RESN-2 |
NPT 2" |
21 |
34.0-48.0 |
40 |
68 |
56-67 |
|
EMC: SHORT THREAD |
||||||
|---|---|---|---|---|---|---|
|
Part Codes |
Entry Thread M |
Entry thread Length D (mm) |
Clamping Range (mm) |
Installation Torque (Nm) |
Across Flat AF (mm) |
Total Length C (mm) |
|
REMC-12 |
M12 x 1.5 |
5 |
3.0-7.0 |
4 |
16 |
23-30 |
|
REMC-16 |
M16 x 1.5 |
5 |
4.5-10.0 |
4 |
20 |
26-34 |
|
REMC-20 |
M20 x 1.5 |
6 |
6.0-13.0 |
8 |
24 |
29-37 |
|
REMC-25 |
M25 x 1.5 |
7 |
9.0-16.0 |
10 |
29 |
33-42 |
|
REMC-32 |
M32 x 1.5 |
8 |
13.0-21.0 |
20 |
36 |
36-44 |
|
REMC-40 |
M40 x 1.5 |
8 |
16.0-28.0 |
20 |
46 |
44-55 |
|
REMC-50 |
M50 x 1.5 |
9 |
21.0-35.0 |
30 |
55 |
51-62 |
|
REMC-63 |
M63 x 1.5 |
10 |
34.0-48.0 |
40 |
68 |
56-67 |
|
REMC-75 |
M75 x 1.5 |
12 |
48.0-62.0 |
40 |
82 |
67-81 |
|
LONG THREAD |
||||||
|---|---|---|---|---|---|---|
|
Part Codes |
Entry Thread M |
Entry thread Length D (mm) |
Clamping Range (mm) |
Installation Torque (Nm) |
Across Flat AF (mm) |
Total Length C (mm) |
|
REMC-12-L |
M12 x 1.5 |
12 |
3.0-7.0 |
4 |
16 |
30-37 |
|
REMC-16-L |
M16 x 1.5 |
12 |
4.5-10.0 |
4 |
20 |
33-41 |
|
REMC-20-L |
M20 x 1.5 |
12 |
6.0-13.0 |
8 |
24 |
35-43 |
|
REMC-25-L |
M25 x 1.5 |
12 |
9.0-16.0 |
10 |
29 |
38-47 |
|
REMC-32-L |
M32 x 1.5 |
15 |
13.0-21.0 |
20 |
36 |
43-51 |
|
REMC-40-L |
M40 x 1.5 |
15 |
16.0-28.0 |
20 |
46 |
51-62 |
|
REMC-50-L |
M50 x 1.5 |
15 |
21.0-35.0 |
30 |
55 |
57-68 |
|
REMC-63-L |
M63 x 1.5 |
15 |
34.0-48.0 |
40 |
68 |
61-72 |
|
PG THREAD |
||||||
|---|---|---|---|---|---|---|
|
Part Codes |
Entry Thread M |
Entry thread Length D (mm) |
Clamping Range (mm) |
Installation Torque (Nm) |
Across Flat AF (mm) |
Total Length C (mm) |
|
REMCP-7-12 |
PG7 |
5 |
3.0-7.0 |
4 |
16 |
23-30 |
|
REMCP-9-16 |
PG9 |
5 |
4.5-10.0 |
4 |
20 |
26-34 |
|
REMCP-11-16 |
PG11 |
6 |
4.5-10.0 |
4 |
22 |
27-35 |
|
REMCP-13.5-20 |
PG13.5 |
6 |
6.0-13.0 |
8 |
24 |
28-36 |
|
REMCP-16-25 |
PG16 |
6 |
9.0-16.0 |
10 |
29 |
32-41 |
|
REMCP-21-25 |
PG21 |
7 |
9.0-16.0 |
20 |
36 |
33-42 |
|
REMCP-29-40 |
PG29 |
8 |
16.0-28.0 |
20 |
46 |
44-55 |
|
REMCP-36-50 |
PG36 |
9 |
21.0-35.0 |
30 |
55 |
51-62 |
|
REMCP-42-50 |
PG 42 |
10 |
21.0-35.0 |
40 |
60 |
52-63 |
|
REMCP-48-63 |
PG 48 |
10 |
34.0-48.0 |
40 |
68 |
56-67 |
|
NPT THREAD |
||||||
|---|---|---|---|---|---|---|
|
Part Codes |
Entry Thread M |
Entry thread Length D (mm) |
Clamping Range (mm) |
Installation Torque (Nm) |
Across Flat AF (mm) |
Total Length C (mm) |
|
REMCN-1/4 |
NPT 1/4" |
13 |
3.0-7.0 |
4 |
16 |
33-40 |
|
REMCN-3/8 |
NPT 3/8" |
13 |
4.5-10.0 |
4 |
20 |
35-42 |
|
REMCN-1/2 |
NPT 1/2" |
16 |
6.0-13.0 |
8 |
24 |
38-45 |
|
REMCN-3/4 |
NPT 3/4" |
16 |
9.0-16.0 |
10 |
29 |
40-48 |
|
REMCN-1 |
NPT 1" |
20 |
13.0-21.0 |
20 |
36 |
46-53 |
|
REMCN-1 1/4 |
NPT 1 1/4" |
20 |
16.0-28.0 |
20 |
46 |
50-58 |
|
REMCN-1 1/2 |
NPT 1 1/2" |
20 |
21.0-35.0 |
30 |
55 |
51-62 |
|
REMCN-2 |
NPT 2" |
21 |
34.0-48.0 |
40 |
68 |
56-67 |
Instruction ManualTechnical Information
|
Parameters |
INDUSTRIAL |
|
|---|---|---|
|
RAW MATERIAL |
Brass, Brass with Nickel Plating |
|
|
IP (IEC 60529) |
IP 68 (5 bar 30 min) |
|
|
Mechanical Specifications |
Cable Anchorage |
|
|
Impact Category |
CATEGORY 6 |
|
|
Service Temperature |
-40˚C to +100˚C (EPDM) |
|
|
Seal |
Single |
|
|
Accessories |
Locknuts |
|
|
Cable type |
Unarmoured |
|
|
Certifications |
CE |
|
|
EMC: |
||
|---|---|---|
|
Parameters |
EMC |
|
|
RAW MATERIAL |
Brass, Brass with Nickel Plating |
|
|
IP (IEC 60529) |
IP 68 (5 bar 30 min) |
|
|
Mechanical Specifications |
Cable Anchorage |
|
|
Impact Category |
CATEGORY 6 |
|
|
Service Temperature |
-40˚C to +100˚C (EPDM) |
|
|
Seal |
||
|
Accessories |
Locknuts/Earthing cones |
|
|
Cable type |
Unarmoured |
|
|
Certifications |
-- |
|
Certifications
CE Certified
More info available on request
