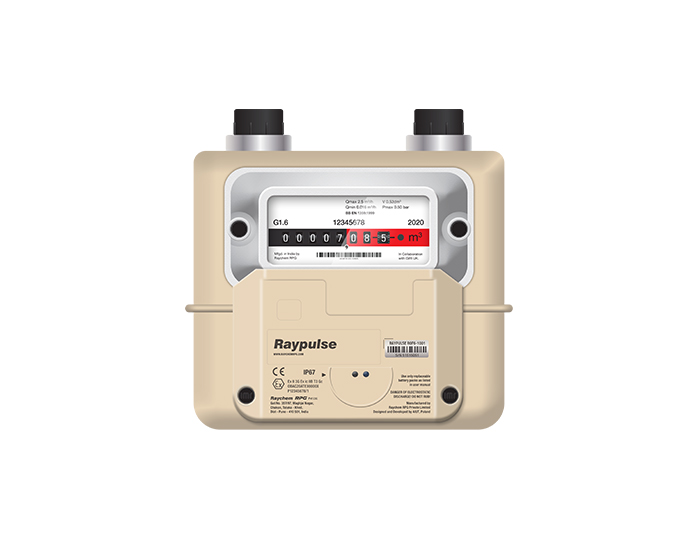

Anytime conversion of mechanical meter to smart meter
- Automatic Meter Reading Application through communication protocol
- Data storage upto 180 days
- Battery life upto 10 Years
- Accurate meter reading
- Timely billing to domestic customers
- more...
- Add to List
- Enquire Now
Please connect with us
Email Us ogd@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
Specifications

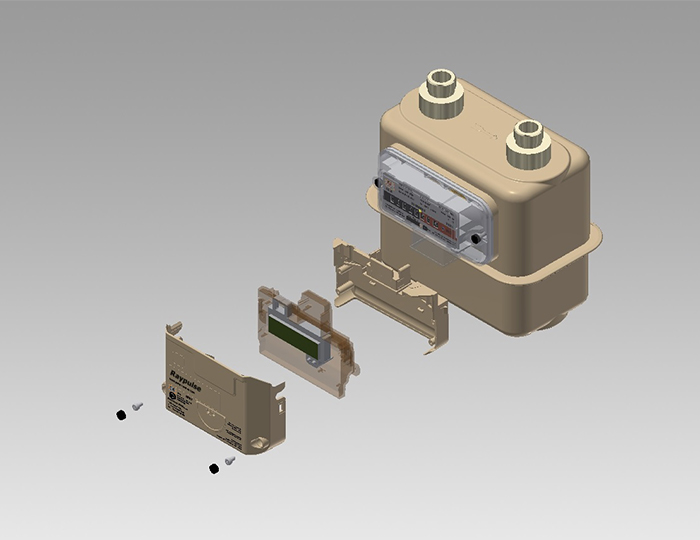

| Retrofittable AMR Module is used for converting a mechanical meter to smart postpaid/AMR meter by using the following steps. |
|---|
| Break Index cap located below index cover |
| Insert AMR Module into the adaptor and into the index of the mechanical gas meter |
| Fix the cover on AMR Module with seal screw and seal it |
|
Commission the smart meter by entering details of existing meter on AMR module through mobile app and is fully functional as a Smart Postpaid Meter |

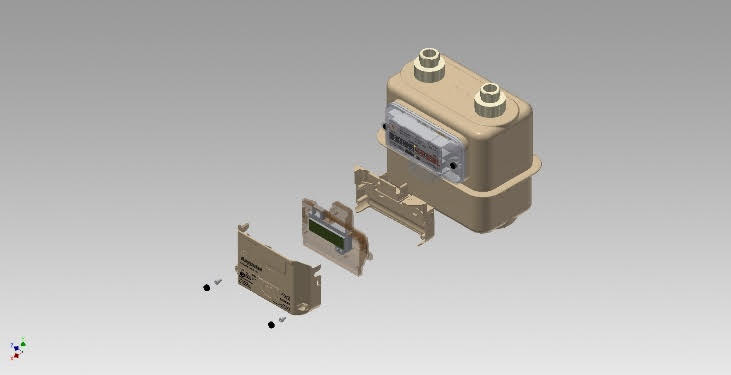

Retro fitment of Post-paid AMR module to existing G1.6 Mechanical Gas Meter
Technical Information
| Parameter | Value |
|---|---|
| Model | Raychem RPG G1.6 |
| Nominal flow rate Qn | 1.6 m³/h |
| Minimal flow rate Qmin | 0.016 m³/h |
| Maximum flow rate Qmax | 2.50 m³/h |
| Transitional flowrate Qt | 0.25 m³/h |
| Cyclic volume – V (measured at 20°C) | 0.52 dm³ |
| Allowable indication errors limit during initial verification | |
| Qmin to 0.1Qmax – E | ±3% |
| 0.1Qmax to Qmax – E | ±1.5% |
| Ambient temperature – tm | -10 to +55°C |
| Gas temperature – tg | -10 to +55°C |
| Max. working pressure – Pmax | 0.50 bar |
| Max. pressure drop ∆ p at Qmax | 2 mbar |
| Index measuring range | 99999,999 m³ |
| Pulse value (pulse is optional) | 0.01m3 |
| Distance between connection bosses | 110 mm |
| Weight | ~1.7 kg |
| Family of gases | Gaseous fuels: Family 1,2 & 3 acc. to EN 437 |
| Electromagnetic class | E1 |
| Mechanical class | M1 |
| Class of gas meter | 1.5a |
| Possible connection standards | NPT, BS746, ISO and others on request |
