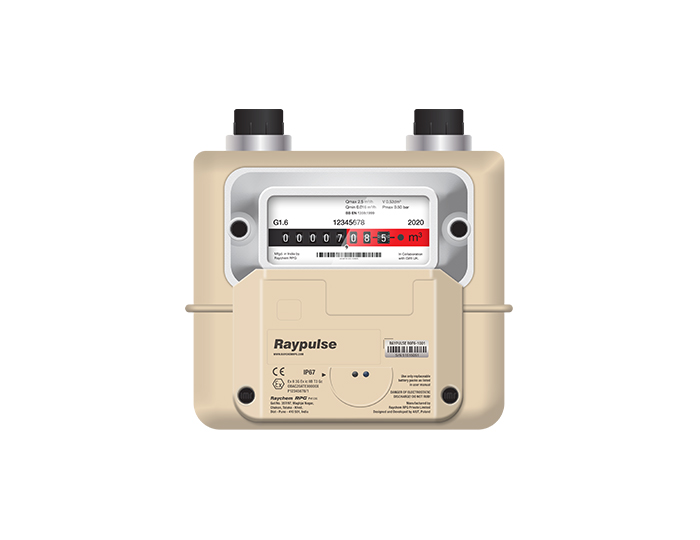

Communication technology allows remote reading of gas consumption
Make in India
Smart meters with RF walk-by,LoRa,NB-IoT technology
Cost effective design for walk-by and fixed gas metering for commercial and residential applications
Improvement in Gas Planning; removes intermittent gas consumption patterns, data variance between procurement and metered gas flow
Elimination of Non-Revenue Gas Meters due to theft/tampering, closed homes, etc.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Email Us ogd@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
Technical Information
| Parameter | Value |
|---|---|
| Model | Raychem RPG G1.6 |
| Nominal flow rate Qn | 1.6 m³/h |
| Minimal flow rate Qmin | 0.016 m³/h |
| Maximum flow rate Qmax | 2.50 m³/h |
| Transitional flowrate Qt | 0.25 m³/h |
| Cyclic volume – V (measured at 20°C) | 0.52 dm³ |
| Allowable indication errors limit during initial verification | |
| Qmin to 0.1Qmax – E | ±3% |
| 0.1Qmax to Qmax – E | ±1.5% |
| Ambient temperature – tm | -10 to +55°C |
| Gas temperature – tg | -10 to +55°C |
| Max. working pressure – Pmax | 0.50 bar |
| Max. pressure drop ∆ p at Qmax | 2 mbar |
| Index measuring range | 99999,999 m³ |
| Pulse value (pulse is optional) | 0.01m3 |
| Distance between connection bosses | 110 mm |
| Weight | ~1.7 kg |
| Family of gases | Gaseous fuels Family 1,2 & 3 acc. to EN 437 |
| Electromagnetic class | E1 |
| Mechanical class | M1 |
| Class of gas meter | 1.5 a |
| Possible connection standards | NPT, BS746, ISO and others on request |
FAQ's
- Specifications
Q. Does smart meter available in both Postpaid & Prepaid module?
» Yes, Both postpaid & prepaid module available with us.
Q. Does tamper alarm facility available in smart gas meter?
» Yes, tamper alarm facility is available with smart gas meter.
Q. What are the communication protocol available in smart gas meter?
» RF, LoRa, GSM, NB-IoT, Sigfox
Q. Do we able to get the meter reading data on server on monthly basis?
» Yes
