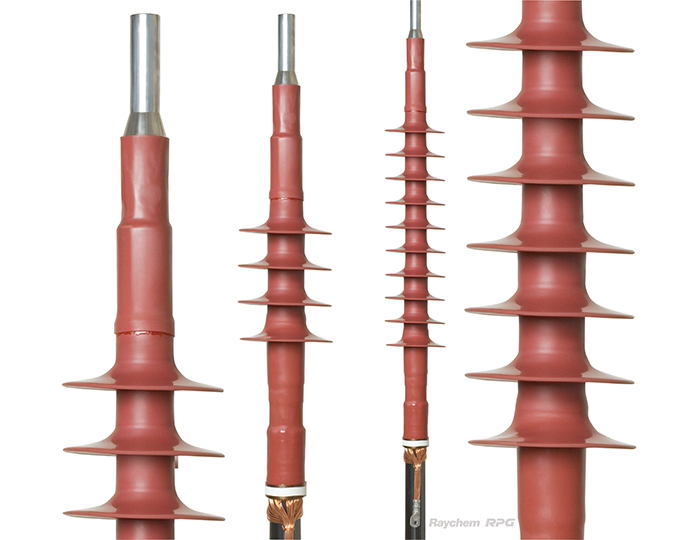

Heat Shrink High Voltage Terminations

1

Applicable Standards

IEC 60840

2

Nominal System Voltage

66kV Phase to Phase

3

Highest System Voltage

72.5kV

4

Impulse Voltage at 95 to 1000C temperature

325kV (Peak)

5

Frequency

50 Hz.

6

AC High Voltage withstand test 15 min dry

95 kV

7

Partial Discharge Test at Ambient

Pre-Stressed at 1.75U0 (67kV) 10sec

Measured at 1.5U0 (57kV)

Less than 5pC

8

Partial Discharge Test at Elevated (95-1000C)

Pre-Stressed at 1.75U0 (67kV) 10sec

Measured at 1.5U0 (57kV)

Less than 5pC

9

Heating Cycle Voltage Test

1. Total Duration of one cycle

24hr

1. Duration of Heating period

8hr

1. Duration of natural cooling period

16hr

1. Temp. of conductor during heating

95 to 1000C

1. AC voltage applied during test

76kV

1. No. of cycles

20

10

Short Circuit Current

Same as Cable size subject to max. Conductor temperature of 250oC.

11

Creepage (outdoor)

2300mm min.

12

Accessories

Mechanical connectors (if ordered separately for terminations)

13

Method of Stress Control

Heat Shrinkable type

14

Tubing’s & Molded parts

Heat Shrinkable type

15

Non-Tracking material

Confirming as per ASTM D-2303

16

Di-electric strength of insulating material

10 kV/mm min

Heat Shrink type Indoor/Outdoor Termination and Straight Through Joint for 66kV (E)
