Accessories include Suspension Clamp, Anchoring/Tension Clamp, Eye Hooks, Insulation Piercing Connector (IPC), Mounting Brackets, Mid Span Joint (MJPT), Bi-metallic Lug (CPTAU), End Caps, and SS Straps and Buckles. Low Voltage ABC Accessories for bare and insulated applications for different cable sizes as per REC and NFC Standards.
The different LV ABC Accessories are suitable for all three types of technologies - Bundled Cables with Bare Neutral Messenger, Insulated Neutral Messenger and Self-supporting Conductors and confirming to REC specifications and NFC standards. They are type tested as per NFC Standard and approved by Utilities all over India.
- Easy to install
- Elimination of faults on LT lines
- Improved reliability
- Avoidance of theft by direct tapping
- Avoidance of overloading of distribution transformers
- more...
- Catalog
- Add to List
- Enquire Now
Please connect with us
Email Us epd@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
S. No. |
LV ABC Accessories |
Reference Standard |
Application |
|---|---|---|---|
|
1 |

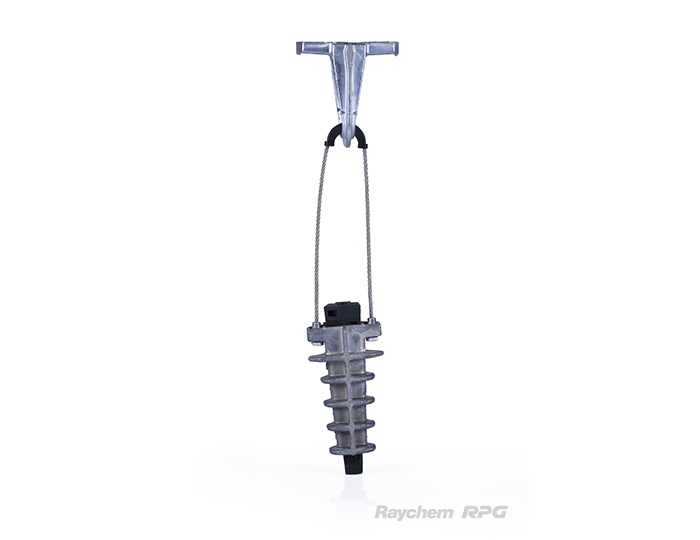

Anchoring / Tension Clamp |
REC / NFC |
Bare Neutral Messenger: Bolted Type, Clamp/Keeper made of aluminium, U-Bolts, Nuts & Washers are galvanized. Range: 16 to 210 sq. mm. |
|
Insulated Neutral Messenger: Clamp body made of corrosion resistant al. alloy Wedges made of polymer Bail made of stainless steel Range: 25 to 120 sq. mm. |
|||
|
Self-Supporting Conductor: Accommodates 2 to 4 insulated cables of self-supporting system Clamp made with Galvanized Steel Arms/bail and Wedges made of polymer Ranges: 2 cores: 4 to 95 sq. mm 4 cores: 25 to 95 sq.mm. |
|||
|
Service Clamp with Bracket Accommodates 2 to 4 insulated service lines Ranges: 2 cores: 16 to 25 sq. mm 4 cores: 16 to 25 sq.mm. |
|||
|
2 |

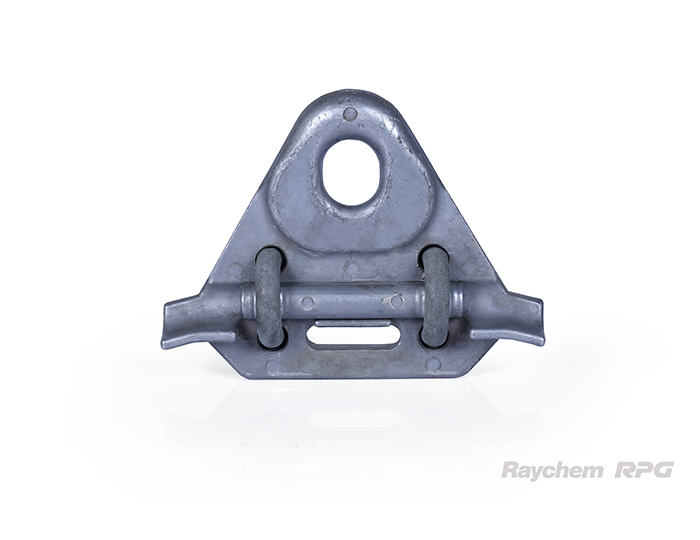

Suspension Clamp |
REC / NFC |

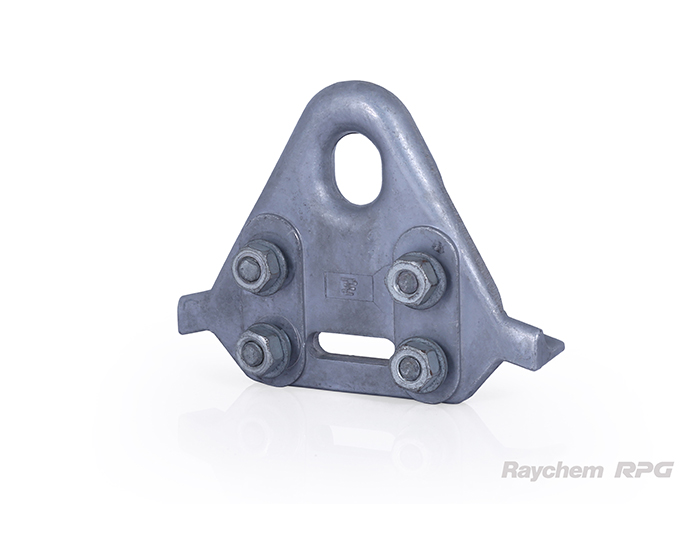

Bare Neutral Messenger: Bolted Type, Clamp/keeper made of aluminium U-Bolts, Nuts & Washers are galvanized Range: 16 to 210 sq. mm. |
|
Insulated Neutral Messenger: Clamp/Link made of polymer Range: 25 to 120 sq. mm. |
|||
|
Self-Supporting Conductor: Accommodates 2 to 4 insulated cables of self-supporting system Clamp made with galvanized steel support and anti UV black resistant thermoplastic insert to grip 2 or 4 conductors Ranges: 2 cores: 50 to 95 sq. mm 4 cores: 35 to 120 sq.mm. |
|||
|
3 |
Pre-Insulated Sleeves/Joints (MJPT) |
NFC 33-021 |
Joining (Pre-insulated) of two LV ABC Cables Range: 16 to 150 sq. mm. |
|
4 |
Pre-Insulated Lugs (CPTAU) |
NFC 33-021 |
Connection (Pre-insulated) between LV ABC Cable and Transformer or End Connection Range: 16 to 150 sq. mm. |
|
5 |

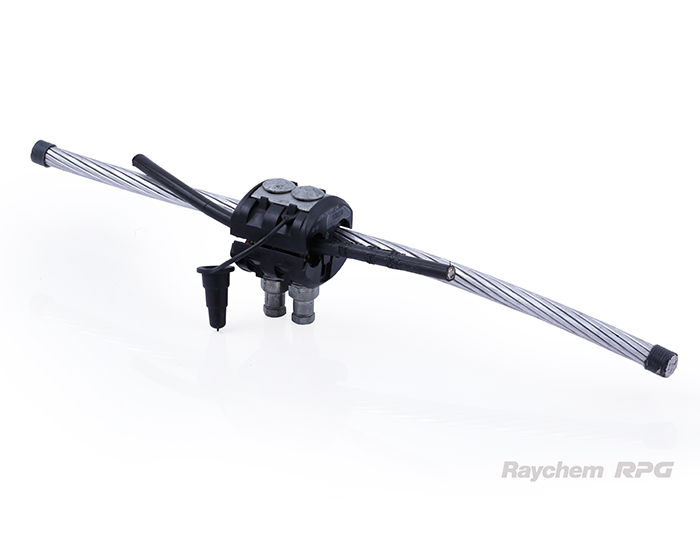

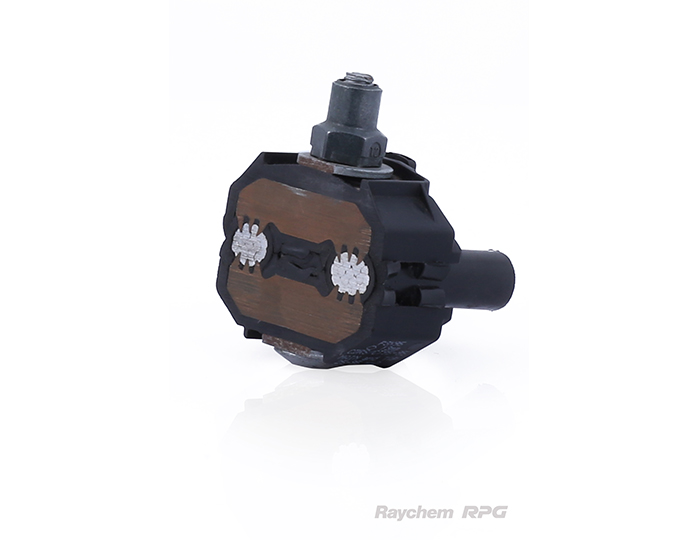

Insulation Piercing Connector (IPC) for LV ABC |
NFC / EN |
Insulated Main to Insulated Main (Upto 150Sq.mm) |
|
Insulated Main to Insulated Tap (Upto 120Sq.mm) |
|||
|
Insulated Tap to Insulated Service Connection (Upto 16Sq.mm) |
|||
|
Bare to Insulated Main/Tap |
|||
|
6 |
Insulation Piercing Connector (IPC) for Covered Conductor |
NFC / EN |
Insulated Main to Insulated Main Upto 33kV, 240Sq.mm |
|
7 |
End Cap |
Thermoplastic End Cap suitable for 16 to 150 sq. mm. |
|
|
8 |
Eye Hooks, Pole Clamps & Brackets |
Eye Hook: Flat Type and Bolted Type (HDG) |
|
|
Pole Clamp: Galvanized Steel Circular & Rectangular Pole Clamps |
|||
|
Bracket: Universal fixing Brackets |
|||
|
9 |
Stainless Steel Strap |
Stainless Steel Strap, Buckles SS Straps & Buckles used to fixing Brackets |
Technical Information
|
SL. No. |
Description |
Value Guaranteed by the Bidder |
|---|---|---|
|
1. |
Suitability (Type of LV ABC) |
Bundled Cable with a Bare Neutral Messenger /Bundled Cable with an Insulated Neutral Messenger / Bundled Cable with 4 Self-supporting Conductors |
|
2. |
Reference standards |
REC Specification / NFC Standard |
|
3. |
Products offered |
Anchoring/Tension Clamp |
|
4. |
Reference standards |
Suspension Clamp |
|
5. |
Products offered |
Pre-Insulated Sleeves/Joints (MJPT) |
|
Pre-Insulated Lugs (CPTAU) |
||
| Insulation Piercing Connector (IPC) | ||
| End Cap | ||
| Eye Hooks, Pole Clamps & Brackets | ||
| Stainless Strap | ||
| 6. | Packing details | StandardWooden Box Packing |
