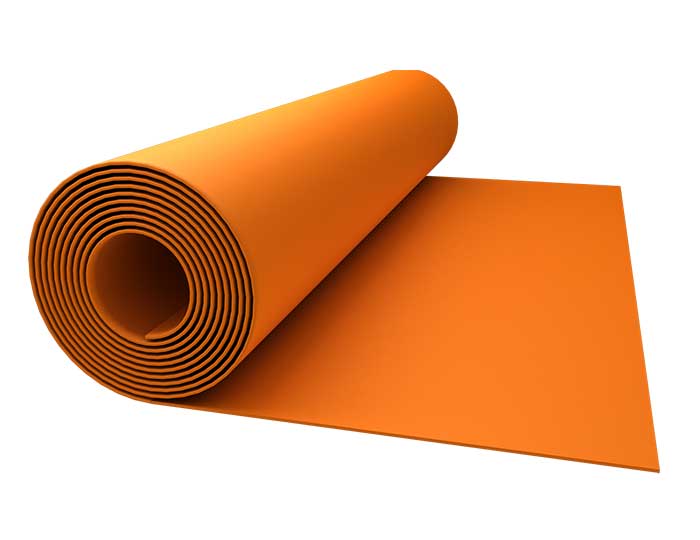

High quality Insulating blanket conforming to Standard IEC 61112
- Protection of personnel from accidental contact with live or earthed electrical conductors, apparatus or circuits and avoidance of short circuits on electrical installations
- Made of elastomer of high dielectric properties
- Electrical insulating blankets conform to IEC 61112
- Catalog
- Add to List
- Enquire Now
Please connect with us
Email Us ebu@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
| Parameter |
|---|
| Plain finish on both sides |
| Light weight |
| Colour: Orange |
| Available in 600mm, 1000mm, 1200mm width |
| Clear marking every 300 mm |
| Category AHC |
Technical Information
Choose Class of blanket as per max working voltage of network/panel
| Classification | Max Working Voltage | Proof Test Voltage | Withstand Voltage |
|---|---|---|---|
| Class 00 | 500 AC | 2,500 AC | 5,000 AC |
| Class 0 | 1,000 AC | 5,000 AC | 10,000 AC |
| Class 1 | 7,500 AC | 10,000 AC | 20,000 AC |
| Class 2 | 17,000 AC | 20,000 AC | 30,000 AC |
| Class 3 | 26,500 AC | 30,000 AC | 40,000 AC |
| Class 4 | 36,000 AC | 40,000 AC | 50,000 AC |
Certifications
IEC 61112
More info. Available on request
