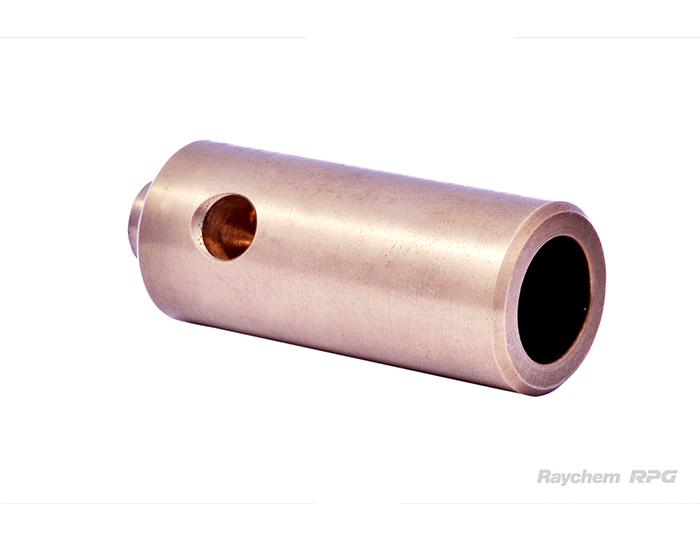

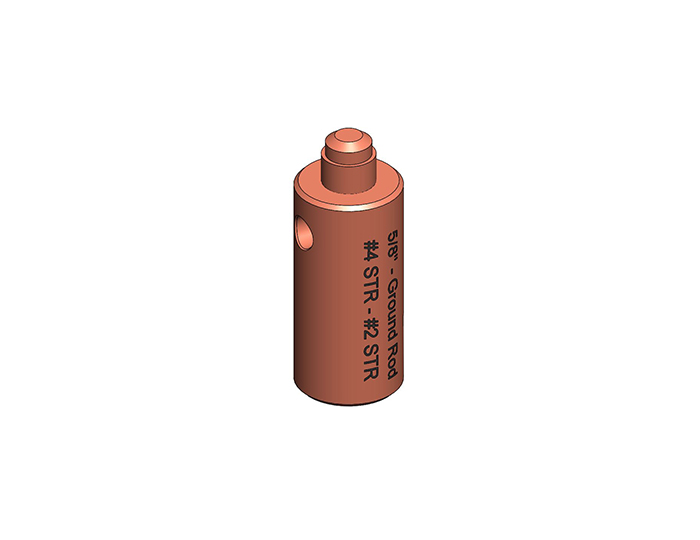

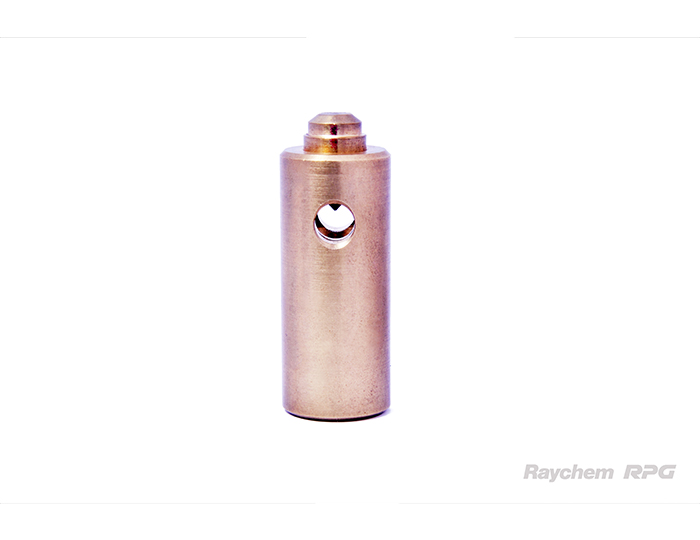

Provides high conductivity permanent connection between ground rod to conductor. Provides an irreversible connection between earth rods and down conductor. It is manufactured from high conductivity copper, quick and easy to install and requires only a hammer.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Product Code |
Conductor Range, AWG |
Conductor Range, Sq.mm. |
Ground Rod Diameter, Nominal Inch (A) |
Ground Rod Diameter, Actual Ø mm |
Number of Conductors |
|---|---|---|---|---|---|
|
RHL12/1/0-2/0 |
1/0 Stranded - 2/0 Stranded |
50 – 70 |
1/2" |
12.7 mm |
1 |
|
RHL12/4-2 |
#4 Stranded - #2 Stranded |
25 – 35 |
1/2" |
12.7 mm |
1 |
|
RHL12/6-4 |
#6 Solid - #4 Solid |
10 – 16 |
1/2" |
12.7 mm |
1 |
|
RHL58/1/0-2/0 |
1/0 Stranded - 2/0 Stranded |
50 – 70 |
5/8" |
14.2 mm |
1 |
|
RHL58/4-2 |
#4 Stranded - #2 Stranded |
25 – 35 |
5/8" |
14.2 mm |
1 |
|
RHL58/6-4 |
#6 Solid - #4 Solid |
10 – 16 |
5/8" |
14.2 mm |
1 |
|
RHL34/1/0-2/0 |
1/0 Stranded - 2/0 Stranded |
50 – 70 |
3/4" |
17.2 mm |
1 |
|
RHL34/4-2 |
#4 Stranded - #2 Stranded |
25 – 35 |
3/4" |
17.2 mm |
1 |
|
RHL34/6-4 |
#6 Solid - #4 Solid |
10 – 16 |
3/4" |
17.2 mm |
1 |
Technical Information
| Parameter |
|---|
| Material : ETP Copper |
| Earth Rod Type: Copper Bonded |
Certifications
IEC certified
More info available on request
