Provides low resistance connection and disconnection between overlapping conductors. Provides an effective low resistance connection and disconnection between overlapping tape / strip conductors.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|

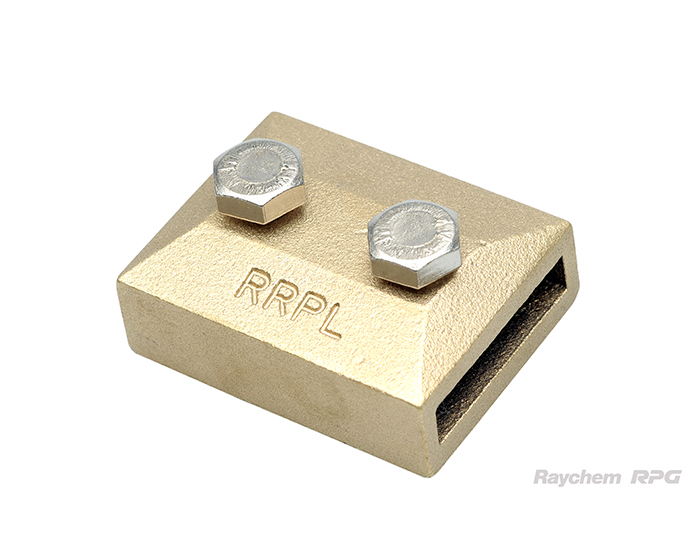

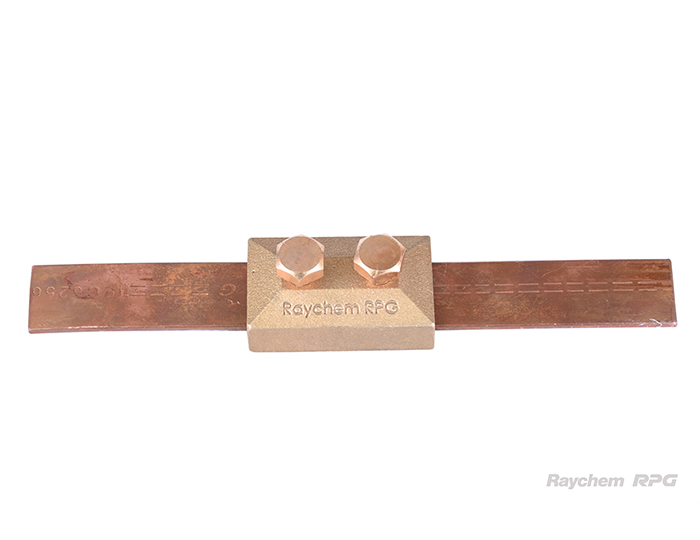

1. Oblong Test Clamp: Oblong Test Clamps are used for supporting or fixing the tape in a straight through position. The clamp enables tapes to be overlapped and secured by the two set screws. |
||
|---|---|---|
|
S.No. |
Product Code |
Copper Tape / Strip Size in mm |
|
1 |
ROC-01 |
26 x 8 |
|
2 |
ROC-02 |
38 x 6 |
|
3 |
ROC-03 |
51 x 10 |
|

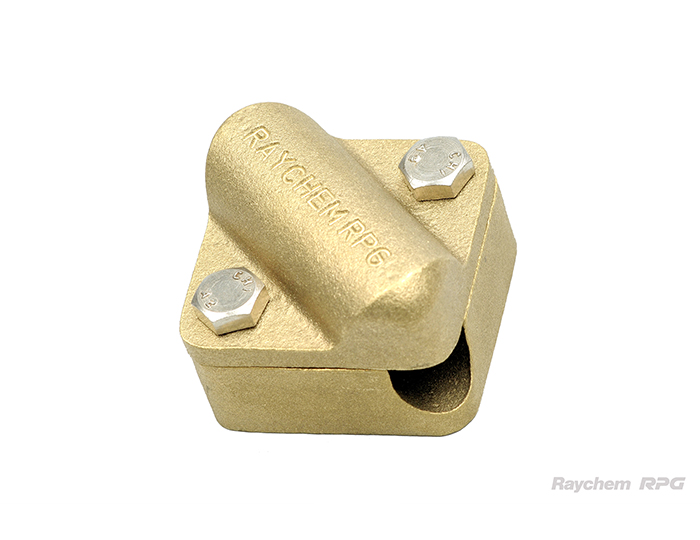

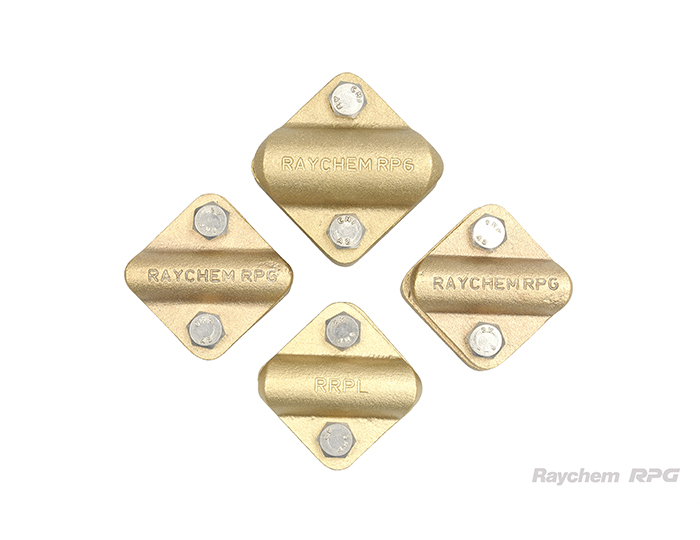

2. Test Clamp: Test Clamps are used for supporting or fixing stranded conductors in a straight through position. |
||
|---|---|---|
|
S.No. |
Product Code |
Conductor Range |
|
1 |
RRCT-01 |
35 |
|
2 |
RRCT-02 |
50 |
|
3 |
RRCT-03 |
70 |
|
4 |
RRCT-04 |
95 |
|
Raychem RPG manufacturers Test Clamp as per IEC 62561-1, BS EN 50164-1 and EN 50164-1. |
||
Technical Information
| Parameter |
|---|
| Manufactured from high quality copper alloy |
| Withstands current of 100kA |
Certifications
IEC certified
More info available on request
