As per European Standards, barrels used in regular copper electrical applications

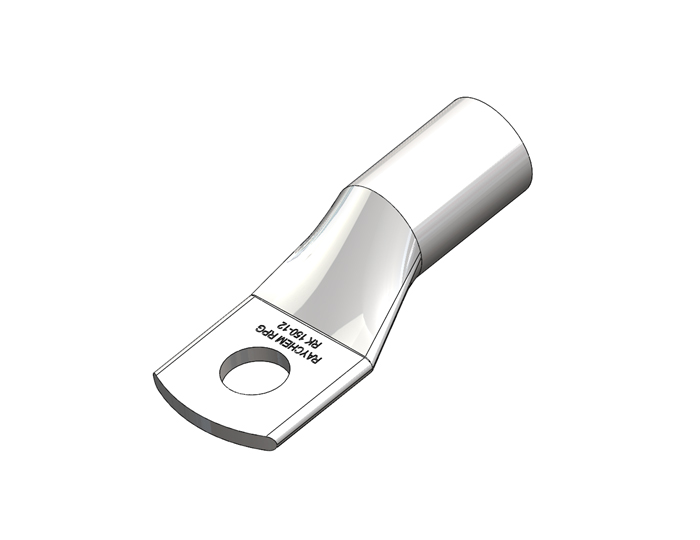

- One-Hole Lugs – EURO series for copper conductors ranging from 1.5 – 400 mm2
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Nominal Cross Section mm2 |
Bolt Size |
Catalouge Code |
Dimensions (mm) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Stud Hole |
Barrel ID |
Barrel OD |
Palm Width |
Stud Centre Distance |
Barrel Length |
Total Length |
||||
|
ØE |
ØA |
ØC |
D |
G |
H |
B |
J |
|||
|
1.5 |
M3 |
RK1.5- 3 |
3.2 |
1.8 |
3.3 |
6.5 |
3.3 |
4.0 |
6.0 |
15.3 |
|
M4 |
RK1.5- 4 |
4.3 |
1.8 |
3.3 |
6.5 |
4.0 |
5.0 |
6.0 |
17.0 |
|
|
M5 |
RK1.5- 5 |
5.3 |
1.8 |
3.3 |
7.5 |
4.8 |
5.5 |
6.0 |
18.8 |
|
|
M6 |
RK1.5- 6 |
6.5 |
1.8 |
3.3 |
9.0 |
6.5 |
6.5 |
6.0 |
22.5 |
|
|
2.5 |
M3 |
RK2.5- 3 |
3.2 |
2.3 |
4.2 |
7.5 |
3.3 |
4.0 |
6.0 |
15.3 |
|
M4 |
RK2.5- 4 |
4.3 |
2.3 |
4.2 |
7.5 |
4.0 |
5.0 |
6.0 |
17.0 |
|
|
M5 |
RK2.5- 5 |
5.3 |
2.3 |
4.2 |
8.5 |
4.8 |
5.5 |
6.0 |
18.8 |
|
|
M6 |
RK2.5- 6 |
6.5 |
2.3 |
4.2 |
9.5 |
6.5 |
6.5 |
6.0 |
22.5 |
|
|
M8 |
RK2.5- 8 |
8.5 |
2.3 |
4.2 |
13.0 |
7.8 |
9.5 |
6.0 |
27.8 |
|
|
4 |
M4 |
RK 4- 4 |
4.3 |
3.0 |
5.0 |
8.5 |
4.8 |
5.5 |
8.0 |
22.8 |
|
M5 |
RK 4- 5 |
5.3 |
3.0 |
5.0 |
9.5 |
4.8 |
6.0 |
8.0 |
22.8 |
|
|
M6 |
RK 4- 6 |
6.5 |
3.0 |
5.0 |
10.0 |
6.5 |
6.5 |
8.0 |
25.5 |
|
|
M8 |
RK 4- 8 |
8.5 |
3.0 |
5.0 |
13.0 |
8.5 |
9.5 |
8.0 |
30.5 |
|
|
6 |
M5 |
RK 6- 5 |
5.5 |
3.5 |
6.5 |
10.0 |
6.5 |
7.5 |
9.0 |
27.5 |
|
M6 |
RK 6- 6 |
6.5 |
3.5 |
6.5 |
12.0 |
6.5 |
7.5 |
9.0 |
27.5 |
|
|
M8 |
RK 6- 8 |
8.5 |
3.5 |
6.5 |
15.0 |
10.0 |
10.0 |
9.0 |
33.0 |
|
|
M10 |
RK 6- 10 |
10.5 |
3.5 |
6.5 |
17.0 |
12.0 |
12.0 |
9.0 |
37.0 |
|
|
M12 |
RK 6- 12 |
13.0 |
3.5 |
6.5 |
19.0 |
13.0 |
13.0 |
9.0 |
41.0 |
|
|
10 |
M5 |
RK 10- 5 |
5.5 |
4.5 |
7.0 |
12.0 |
6.5 |
7.5 |
10.0 |
28.5 |
|
M6 |
RK 10- 6 |
6.5 |
4.5 |
7.0 |
12.0 |
6.5 |
7.5 |
10.0 |
28.5 |
|
|
M8 |
RK 10- 8 |
8.5 |
4.5 |
7.0 |
15.0 |
10.0 |
10.0 |
10.0 |
35.0 |
|
|
M10 |
RK 10- 10 |
10.5 |
4.5 |
7.0 |
17.0 |
12.0 |
12.0 |
10.0 |
39.0 |
|
|
M12 |
RK 10- 12 |
13.0 |
4.5 |
7.0 |
19.0 |
13.0 |
13.0 |
10.0 |
42.0 |
|
|
16 |
M5 |
RK 16- 5 |
5.5 |
5.5 |
8.5 |
12.0 |
5.5 |
6.5 |
13.0 |
31.5 |
|
M6 |
RK 16- 6 |
6.5 |
5.5 |
8.5 |
12.0 |
6.3 |
7.5 |
13.0 |
33.3 |
|
|
M8 |
RK 16- 8 |
8.5 |
5.5 |
8.5 |
15.0 |
8.5 |
9.5 |
13.0 |
37.5 |
|
|
M10 |
RK 16- 10 |
10.5 |
5.5 |
8.5 |
17.0 |
10.5 |
11.5 |
13.0 |
41.5 |
|
|
M12 |
RK 16- 12 |
13.0 |
5.5 |
8.5 |
19.0 |
12.0 |
13.0 |
13.0 |
45.0 |
|
|
25 |
M5 |
RK 25- 5 |
5.5 |
7.0 |
10.0 |
14.0 |
7.5 |
7.5 |
15.0 |
37.5 |
|
M6 |
RK 25- 6 |
6.5 |
7.0 |
10.0 |
14.0 |
7.5 |
7.5 |
15.0 |
37.5 |
|
|
M8 |
RK 25- 8 |
8.5 |
7.0 |
10.0 |
16.0 |
10.0 |
10.0 |
15.0 |
42.0 |
|
|
M10 |
RK 25- 10 |
10.5 |
7.0 |
10.0 |
18.0 |
12.0 |
12.0 |
15.0 |
46.0 |
|
|
M12 |
RK 25- 12 |
13.0 |
7.0 |
10.0 |
19.0 |
13.0 |
13.0 |
15.0 |
48.0 |
|
|
M14 |
RK 25- 14 |
15.0 |
7.0 |
10.0 |
21.0 |
14.5 |
14.5 |
15.0 |
52.5 |
|
|
35 |
M6 |
RK 35- 6 |
6.5 |
8.5 |
12.0 |
17.0 |
7.5 |
7.5 |
17.0 |
39.5 |
|
M8 |
RK 35- 8 |
8.5 |
8.5 |
12.0 |
17.0 |
10.0 |
10.0 |
17.0 |
44.0 |
|
|
M10 |
RK 35- 10 |
10.5 |
8.5 |
12.0 |
19.0 |
12.0 |
12.0 |
17.0 |
49.0 |
|
|
M12 |
RK 35- 12 |
13.0 |
8.5 |
12.0 |
21.0 |
13.0 |
13.0 |
17.0 |
51.0 |
|
|
M14 |
RK 35- 14 |
15.0 |
8.5 |
12.0 |
21.0 |
14.5 |
14.5 |
17.0 |
54.5 |
|
|
M16 |
RK 35- 16 |
17.0 |
8.5 |
12.0 |
26.0 |
16.0 |
16.0 |
17.0 |
58.0 |
|
|
50 |
M6 |
RK 50- 6 |
6.5 |
10.0 |
14.0 |
20.0 |
10.0 |
10.0 |
19.0 |
47.0 |
|
M8 |
RK 50- 8 |
8.5 |
10.0 |
14.0 |
20.0 |
10.0 |
10.0 |
19.0 |
47.0 |
|
|
M10 |
RK 50- 10 |
10.5 |
10.0 |
14.0 |
20.0 |
12.0 |
12.0 |
19.0 |
51.0 |
|
|
M12 |
RK 50- 12 |
13.0 |
10.0 |
14.0 |
23.0 |
13.0 |
13.0 |
19.0 |
56.0 |
|
|
M14 |
RK 50- 14 |
15.0 |
10.0 |
14.0 |
23.0 |
14.5 |
14.5 |
19.0 |
59.5 |
|
|
M16 |
RK 50- 16 |
17.0 |
10.0 |
14.0 |
28.0 |
16.0 |
16.0 |
19.0 |
62.0 |
|
|
M20 |
RK 50- 20 |
21.0 |
10.0 |
14.0 |
30.0 |
19.0 |
19.0 |
19.0 |
67.0 |
|
|
70 |
M6 |
RK 70- 6 |
6.5 |
12.0 |
16.5 |
23.0 |
10.0 |
10.0 |
21.0 |
53.0 |
|
M8 |
RK 70- 8 |
6.5 |
12.0 |
16.5 |
23.0 |
10.0 |
10.0 |
21.0 |
53.0 |
|
|
M10 |
RK 70- 10 |
10.5 |
12.0 |
16.5 |
23.0 |
12.0 |
12.0 |
21.0 |
56.0 |
|
|
M12 |
RK 70- 12 |
13.0 |
12.0 |
16.5 |
23.0 |
13.0 |
13.0 |
21.0 |
59.0 |
|
|
M14 |
RK 70- 14 |
15.0 |
12.0 |
16.5 |
23.0 |
14.5 |
14.5 |
21.0 |
62.5 |
|
|
M16 |
RK 70- 16 |
17.0 |
12.0 |
16.5 |
28.0 |
16.0 |
16.0 |
21.0 |
66.0 |
|
|
M20 |
RK 70- 20 |
21.0 |
12.0 |
16.5 |
30.0 |
19.0 |
19.0 |
21.0 |
72.0 |
|
|
95 |
M8 |
RK 95- 8 |
8.5 |
13.5 |
18.0 |
26.0 |
12.0 |
12.0 |
25.0 |
60.0 |
|
M10 |
RK 95- 10 |
10.5 |
13.5 |
18.0 |
26.0 |
12.0 |
12.0 |
25.0 |
60.0 |
|
|
M12 |
RK 95- 12 |
13.0 |
13.5 |
18.0 |
26.0 |
13.0 |
13.0 |
25.0 |
62.0 |
|
|
M14 |
RK 95- 14 |
15.0 |
13.5 |
18.0 |
26.0 |
14.5 |
14.5 |
25.0 |
65.5 |
|
|
M16 |
RK 95- 16 |
17.0 |
13.5 |
18.0 |
28.0 |
16.0 |
16.0 |
25.0 |
70.0 |
|
|
M20 |
RK 95- 20 |
21.0 |
13.5 |
18.0 |
36.0 |
22.0 |
22.0 |
25.0 |
82.0 |
|
|
120 |
M8 |
RK 120- 8 |
8.5 |
15.0 |
19.5 |
28.0 |
14.0 |
14.0 |
26.0 |
65.0 |
|
M10 |
RK 120- 10 |
10.5 |
15.0 |
19.5 |
28.0 |
14.0 |
14.0 |
26.0 |
65.0 |
|
|
M12 |
RK 120- 12 |
13.0 |
15.0 |
19.5 |
28.0 |
14.0 |
14.0 |
26.0 |
65.0 |
|
|
M14 |
RK 120- 14 |
15.0 |
15.0 |
19.5 |
28.0 |
15.0 |
15.0 |
26.0 |
67.0 |
|
|
M16 |
RK 120- 16 |
17.0 |
15.0 |
19.5 |
30.0 |
16.0 |
16.0 |
26.0 |
70.0 |
|
|
M20 |
RK 120- 20 |
21.0 |
15.0 |
19.5 |
36.0 |
22.0 |
22.0 |
26.0 |
85.0 |
|
|
150 |
M8 |
RK 150- 8 |
8.5 |
16.5 |
21.0 |
31.0 |
14.0 |
14.0 |
30.0 |
79.0 |
|
M10 |
RK 150- 10 |
10.5 |
16.5 |
21.0 |
31.0 |
14.0 |
14.0 |
30.0 |
79.0 |
|
|
M12 |
RK 150- 12 |
13.0 |
16.5 |
21.0 |
31.0 |
15.0 |
15.0 |
30.0 |
80.0 |
|
|
M14 |
RK 150- 14 |
15.0 |
16.5 |
21.0 |
31.0 |
15.0 |
15.0 |
30.0 |
80.0 |
|
|
M16 |
RK 150- 16 |
17.0 |
16.5 |
21.0 |
31.0 |
16.0 |
16.0 |
30.0 |
81.0 |
|
|
M20 |
RK 150- 20 |
21.0 |
16.5 |
21.0 |
36.0 |
22.0 |
22.0 |
30.0 |
91.0 |
|
|
185 |
M10 |
RK 185- 10 |
10.5 |
19.0 |
24.0 |
35.0 |
18.0 |
18.0 |
30.0 |
83.0 |
|
M12 |
RK 185- 12 |
13.0 |
19.0 |
24.0 |
35.0 |
18.0 |
18.0 |
30.0 |
83.0 |
|
|
M14 |
RK 185- 14 |
15.0 |
19.0 |
24.0 |
35.0 |
18.0 |
18.0 |
30.0 |
83.0 |
|
|
M16 |
RK 185- 16 |
17.0 |
19.0 |
24.0 |
35.0 |
18.0 |
18.0 |
30.0 |
83.0 |
|
|
M20 |
RK 185- 20 |
21.0 |
19.0 |
24.0 |
39.0 |
22.0 |
22.0 |
30.0 |
91.0 |
|
|
240 |
M10 |
RK 240- 10 |
10.5 |
21.0 |
26.0 |
39.0 |
21.5 |
19.0 |
35.0 |
93.5 |
|
M12 |
RK 240- 12 |
13.0 |
21.0 |
26.0 |
39.0 |
21.5 |
19.0 |
35.0 |
93.5 |
|
|
M14 |
RK 240- 14 |
15.0 |
21.0 |
26.0 |
39.0 |
21.5 |
19.0 |
35.0 |
93.5 |
|
|
M16 |
RK 240- 16 |
17.0 |
21.0 |
26.0 |
39.0 |
21.5 |
19.0 |
35.0 |
93.5 |
|
|
M18 |
RK 240- 18 |
19.0 |
21.0 |
26.0 |
39.0 |
21.5 |
19.0 |
35.0 |
93.5 |
|
|
M20 |
RK 240- 20 |
21.0 |
21.0 |
26.0 |
39.0 |
21.5 |
19.0 |
35.0 |
93.5 |
|
|
300 |
M12 |
RK 300- 12 |
13.0 |
23.5 |
29.5 |
43.0 |
24.0 |
24.0 |
44.0 |
111.0 |
|
M14 |
RK 300- 14 |
15.0 |
23.5 |
29.5 |
43.0 |
24.0 |
24.0 |
44.0 |
111.0 |
|
|
M16 |
RK 300- 16 |
17.0 |
23.5 |
29.5 |
43.0 |
24.0 |
24.0 |
44.0 |
111.0 |
|
|
M20 |
RK 300- 20 |
21.0 |
23.5 |
29.5 |
43.0 |
24.0 |
24.0 |
44.0 |
111.0 |
|
|
400 |
M12 |
RK 400- 12 |
13.0 |
27.0 |
34.0 |
49.0 |
24.0 |
24.0 |
44.0 |
114.0 |
|
M14 |
RK 400- 14 |
15.0 |
27.0 |
34.0 |
49.0 |
24.0 |
24.0 |
44.0 |
114.0 |
|
|
M16 |
RK 400- 16 |
17.0 |
27.0 |
34.0 |
49.0 |
24.0 |
24.0 |
44.0 |
114.0 |
|
|
M20 |
RK 400- 20 |
21.0 |
27.0 |
34.0 |
49.0 |
24.0 |
24.0 |
44.0 |
114.0 |
|
|
M24 |
RK 400- 24 |
25.0 |
27.0 |
34.0 |
49.0 |
24.0 |
24.0 |
44.0 |
114.0 |
|
Technical Information
| Parameter |
|---|
| Annealed material optimizes material and crimping properties |
| Flat contact surface and precise stud holes as per the Metric Standard |
| Material – High conductivity ETP Copper |
| Finish – Electro tin plated |
Certifications
IEC certified
More info available on request
Related Products
All products provided below with slider to find faster.
/
Customizable
A2LDS - Two-hole Lugs - Aluminium Dual Rated
For aluminium and copper conductors
Learn More
Customizable
AFDS - Two-way Splice Connectors - Aluminium Dual Rated
Standard barrel with crimps for reliable connection
Learn More
Customizable
AFL - Two-way Splice Connectors - Long Barrel
Long barrel with multiple crimps for secured connection
Learn More
Customizable
AFS - Two-way Splice Connectors - Standard Barrel
Standard barrel with crimps for reliable connection
Learn More
Customizable
ALDH - One-hole Lugs - Aluminium Dual Rated Heavy Duty
For heavy duty aluminium and copper conductors
Learn More
Customizable
ALDS - One-hole Lugs - Aluminium Dual Rated
For aluminium and copper conductors
Learn More
Customizable
RADE - One-hole Lugs - Aluminium Lugs as per DIN 46329
For aluminium and copper conductors and best suited to avoid rotation or movement of lugs
Learn More
Customizable
RCD - Two-way Splice Connectors - DIN 46267 Part-1
Splices designed as per DIN Standard 46267, Part-1
Learn More
Customizable
RCL - Two-way Splice Connectors - Long Barrel
Long barrel with multiple crimps for secured connection
Learn More
Customizable
RCRL - In line Connectors - Reducing Link
Application for different sizes of cable connections
Learn More
Customizable
RCS - Two-way Splice Connectors - Short Barrel
Standard barrel with crimps for reliable connection
Learn More
Customizable
RLAX - One-hole Lugs - Aluminium Lugs for XLPE Cables
For significant lower dead weight aluminium conductors in power distribution application
Learn More
