For aluminium and copper conductors and best suited to avoid rotation or movement of lugs

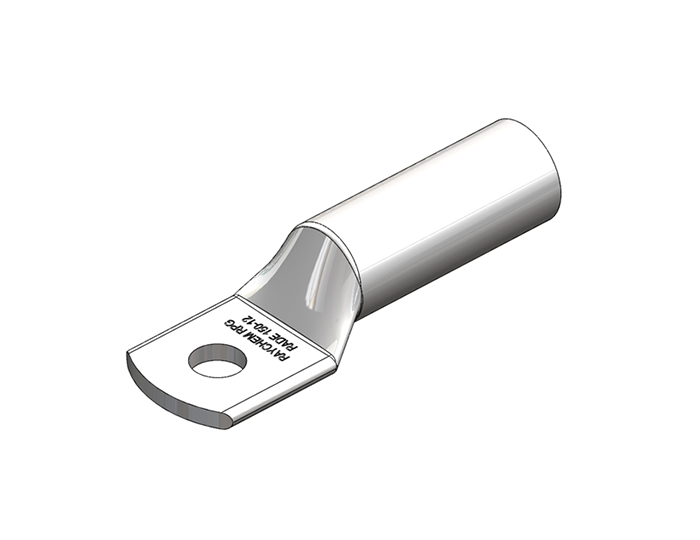

- One-Hole Compression Lugs for aluminium conductors ranging from 10 – 500 mm2
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Nominal Cross Section mm2 |
Bolt Size |
Catalogue Code |
Dimensions (mm) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Stud Hole |
Barrel ID |
Barrel OD |
Palm Width |
Stud Centre Distance |
Barrel Length |
Total Length |
||||
|
ØE |
ØA |
ØC |
D |
G |
H |
B |
J |
|||
|
10 |
M6 |
RADE-10-6 |
6.5 |
5.0 |
10.0 |
16.0 |
14.0 |
16.0 |
25.0 |
66.0 |
|
10 |
M8 |
RADE-10-8 |
8.5 |
5.0 |
10.0 |
18.0 |
14.0 |
16.0 |
25.0 |
66.0 |
|
16 |
M8 |
RADE-16-8 |
8.5 |
5.8 |
12.0 |
18.0 |
14.0 |
16.0 |
25.0 |
66.0 |
|
16 |
M10 |
RADE-16-10 |
10.5 |
5.8 |
12.0 |
18.0 |
14.0 |
16.0 |
25.0 |
66.0 |
|
25 |
M8 |
RADE-25-8 |
8.5 |
6.8 |
12.0 |
18.0 |
14.0 |
16.0 |
30.0 |
74.0 |
|
25 |
M10 |
RADE-25-10 |
10.5 |
6.8 |
12.0 |
18.0 |
14.0 |
16.0 |
30.0 |
74.0 |
|
25 |
M12 |
RADE-25-12 |
13.0 |
6.8 |
12.0 |
18.0 |
14.0 |
16.0 |
30.0 |
74.0 |
|
35 |
M8 |
RADE-35-8 |
8.5 |
8.0 |
14.0 |
21.0 |
14.0 |
16.0 |
37.0 |
81.0 |
|
35 |
M10 |
RADE-35-10 |
10.5 |
8.0 |
14.0 |
21.0 |
14.0 |
16.0 |
37.0 |
81.0 |
|
35 |
M12 |
RADE-35-12 |
13.0 |
8.0 |
14.0 |
21.0 |
14.0 |
16.0 |
37.0 |
81.0 |
|
50 |
M8 |
RADE-50-8 |
8.5 |
9.8 |
16.0 |
25.0 |
14.0 |
16.0 |
42.0 |
86.0 |
|
50 |
M10 |
RADE-50-10 |
10.5 |
9.8 |
16.0 |
25.0 |
14.0 |
16.0 |
42.0 |
86.0 |
|
50 |
M12 |
RADE-50-12 |
13.0 |
9.8 |
16.0 |
25.0 |
14.0 |
16.0 |
42.0 |
86.0 |
|
70 |
M8 |
RADE-70-8 |
8.5 |
11.2 |
18.5 |
28.0 |
14.0 |
16.0 |
52.0 |
86.0 |
|
70 |
M10 |
RADE-70-10 |
10.5 |
11.2 |
18.5 |
28.0 |
16.0 |
18.0 |
52.0 |
102.0 |
|
70 |
M12 |
RADE-70-12 |
13.0 |
11.2 |
18.5 |
28.0 |
16.0 |
18.0 |
52.0 |
102.0 |
|
95 |
M10 |
RADE-95-10 |
10.5 |
13.2 |
22.0 |
32.0 |
16.0 |
18.0 |
56.0 |
106.0 |
|
95 |
M12 |
RADE-95-12 |
13.0 |
13.2 |
22.0 |
32.0 |
16.0 |
18.0 |
56.0 |
106.0 |
|
95 |
M16 |
RADE-95-16 |
17.0 |
13.2 |
22.0 |
32.0 |
16.0 |
18.0 |
56.0 |
106.0 |
|
120 |
M10 |
RADE-120-10 |
10.5 |
14.7 |
23.0 |
32.0 |
16.0 |
18.0 |
56.0 |
107.0 |
|
120 |
M12 |
RADE-120-12 |
13.0 |
14.7 |
23.0 |
32.0 |
16.0 |
18.0 |
56.0 |
107.0 |
|
120 |
M16 |
RADE-120-16 |
17.0 |
14.7 |
23.0 |
32.0 |
16.0 |
18.0 |
56.0 |
107.0 |
|
150 |
M10 |
RADE-150-10 |
10.5 |
16.3 |
25.0 |
35.0 |
17.0 |
20.0 |
60.0 |
120.0 |
|
150 |
M12 |
RADE-150-12 |
13.0 |
16.3 |
25.0 |
35.0 |
17.0 |
20.0 |
60.0 |
120.0 |
|
150 |
M16 |
RADE-150-16 |
17.0 |
16.3 |
25.0 |
35.0 |
17.0 |
20.0 |
60.0 |
120.0 |
|
150 |
M20 |
RADE-150-20 |
21.0 |
16.3 |
25.0 |
35.0 |
17.0 |
20.0 |
60.0 |
120.0 |
|
185 |
M10 |
RADE-185-10 |
10.5 |
18.3 |
28.5 |
40.0 |
17.0 |
20.0 |
60.0 |
123.0 |
|
185 |
M12 |
RADE-185-12 |
13.0 |
18.3 |
28.5 |
40.0 |
17.0 |
20.0 |
60.0 |
123.0 |
|
185 |
M16 |
RADE-185-16 |
17.0 |
18.3 |
28.5 |
40.0 |
17.0 |
20.0 |
60.0 |
123.0 |
|
185 |
M20 |
RADE-185-20 |
21.0 |
18.3 |
28.5 |
40.0 |
17.0 |
20.0 |
60.0 |
123.0 |
|
240 |
M10 |
RADE-240-10 |
10.5 |
21.0 |
32.0 |
45.0 |
19.0 |
25.0 |
70.0 |
135.0 |
|
240 |
M12 |
RADE-240-12 |
13.0 |
21.0 |
32.0 |
45.0 |
19.0 |
25.0 |
70.0 |
135.0 |
|
240 |
M16 |
RADE-240-16 |
17.0 |
21.0 |
32.0 |
45.0 |
19.0 |
25.0 |
70.0 |
135.0 |
|
240 |
M20 |
RADE-240-20 |
21.0 |
21.0 |
32.0 |
45.0 |
19.0 |
25.0 |
70.0 |
135.0 |
|
300 |
M12 |
RADE-300-12 |
13.0 |
23.3 |
34.0 |
49.0 |
19.0 |
25.0 |
70.0 |
143.0 |
|
300 |
M16 |
RADE-300-16 |
17.0 |
23.3 |
34.0 |
49.0 |
19.0 |
25.0 |
70.0 |
143.0 |
|
300 |
M20 |
RADE-300-20 |
21.0 |
23.3 |
34.0 |
49.0 |
19.0 |
25.0 |
70.0 |
143.0 |
|
400 |
M12 |
RADE-400-12 |
13.0 |
26.0 |
38.5 |
58.0 |
20.0 |
30.0 |
70.0 |
185.0 |
|
400 |
M16 |
RADE-400-16 |
17.0 |
26.0 |
38.5 |
58.0 |
20.0 |
30.0 |
70.0 |
185.0 |
|
400 |
M20 |
RADE-400-20 |
21.0 |
26.0 |
38.5 |
58.0 |
20.0 |
30.0 |
70.0 |
185.0 |
|
500 |
M16 |
RADE-500-16 |
17.0 |
29.0 |
44.0 |
63.0 |
20.0 |
30.0 |
70.0 |
185.0 |
|
500 |
M20 |
RADE-500-20 |
21.0 |
29.0 |
44.0 |
63.0 |
20.0 |
30.0 |
70.0 |
185.0 |
Technical Information
| Parameter |
|---|
| Designed as per DIN 46329 Standard |
| Provides maximum conductivity, low resistance and ductility for excellent combination of electrical and crimp forming properties |
| Seamless, one-piece aluminum construction for maximum conductivity and avoids oxidation on surface |
| Material – High conductivity electrolytic aluminium |
| Finish - Natural |
