For significant lower dead weight aluminium conductors in power distribution application

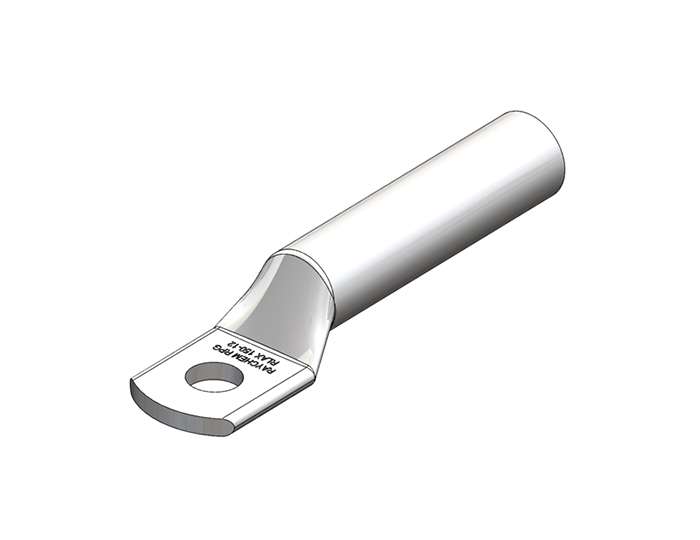

- One-Hole Lugs for XLPE Cables for aluminium conductors ranging from 6 – 1000 mm2
- With significant lower dead weight, it is a popular choice for power distribution applications
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Nominal Cross Section mm2 |
Bolt Size |
Catalogue Code |
Dimensions (mm) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Stud Hole |
Barrel ID |
Barrel OD |
Palm Width |
Stud Centre Distance |
Barrel Length |
Total Length |
||||
|
ØE |
ØA |
ØC |
D |
G |
H |
B |
J |
|||
|
6 |
M6 |
RLAX 6-6 |
6.5 |
3.5 |
5.5 |
12.0 |
6.0 |
7.0 |
7.0 |
24.0 |
|
10 |
M6 |
RLAX 10-6 |
8.5 |
4.7 |
7.5 |
13.5 |
8.0 |
8.0 |
9.0 |
31.0 |
|
10 |
M8 |
RLAX 10-8 |
8.5 |
4.7 |
7.5 |
13.5 |
8.0 |
8.0 |
9.0 |
31.0 |
|
16 |
M6 |
RLAX 16-6 |
8.5 |
5.5 |
8.3 |
12.0 |
9.0 |
9.5 |
14.5 |
38.0 |
|
16 |
M8 |
RLAX 16-8 |
8.5 |
5.5 |
8.3 |
12.0 |
9.0 |
9.5 |
14.5 |
38.0 |
|
25 |
M8 |
RLAX 25-8 |
8.5 |
7.2 |
9.7 |
14.0 |
9.0 |
12.0 |
41.0 |
69.0 |
|
35 |
M8 |
RLAX 35-8 |
8.5 |
8.5 |
11.0 |
16.0 |
11.0 |
11.0 |
50.0 |
79.0 |
|
50 |
M8 |
RLAX 50-8 |
8.5 |
10.3 |
13.5 |
19.5 |
11.0 |
13.0 |
49.0 |
81.0 |
|
50 |
M10 |
RLAX 50-10 |
10.5 |
10.3 |
13.5 |
19.5 |
11.0 |
13.0 |
49.0 |
81.0 |
|
70 |
M10 |
RLAX 70-10 |
10.5 |
10.2 |
14.5 |
20.5 |
13.0 |
13.0 |
62.0 |
98.0 |
|
95 |
M12 |
RLAX 95-12 |
13.0 |
12.0 |
16.9 |
23.5 |
14.0 |
14.0 |
73.0 |
109.0 |
|
120 |
M12 |
RLAX 120-12 |
13.0 |
14.0 |
19.0 |
26.5 |
15.0 |
15.0 |
73.0 |
114.0 |
|
150 |
M12 |
RLAX 150-12 |
13.0 |
15.1 |
21.1 |
29.5 |
17.0 |
17.0 |
83.0 |
128.0 |
|
185 |
M12 |
RLAX 185-12 |
13.0 |
16.6 |
23.9 |
33.0 |
18.0 |
18.0 |
83.0 |
131.0 |
|
225 |
M12 |
RLAX 225-12 |
13.0 |
18.6 |
26.1 |
36.0 |
20.0 |
20.0 |
86.0 |
140.0 |
|
240 |
M12 |
RLAX 240-12 |
13.0 |
19.3 |
27.2 |
37.5 |
22.0 |
22.0 |
86.0 |
144.0 |
|
300 |
M20 |
RLAX 300-20 |
20.3 |
22.0 |
30.2 |
42.0 |
27.0 |
27.0 |
89.0 |
157.0 |
|
400 |
M20 |
RLAX 400-20 |
20.3 |
25.0 |
34.8 |
48.0 |
30.0 |
30.0 |
113.0 |
186.0 |
|
500 |
M20 |
RLAX 500-20 |
20.3 |
28.2 |
39.1 |
54.0 |
32.0 |
32.0 |
124.0 |
204.0 |
|
630 |
M20 |
RLAX 630-20 |
20.3 |
31.7 |
44.4 |
61.0 |
34.0 |
34.0 |
140.0 |
224.0 |
|
800 |
M20 |
RLAX 800-20 |
20.3 |
35.7 |
49.5 |
68.0 |
39.0 |
39.0 |
147.0 |
250.0 |
|
1000 |
M20 |
RLAX 1000-20 |
20.3 |
41.0 |
56.0 |
77.5 |
45.0 |
45.0 |
160.0 |
280.0 |
Technical Information
| Parameter |
|---|
| Made with 99.5 % pure aluminum |
| Designed to accept a variety of conductor forms, especially low stranded compacted conductors |
| Material – High conductivity electrolytic aluminium |
| Finish - Natural |
