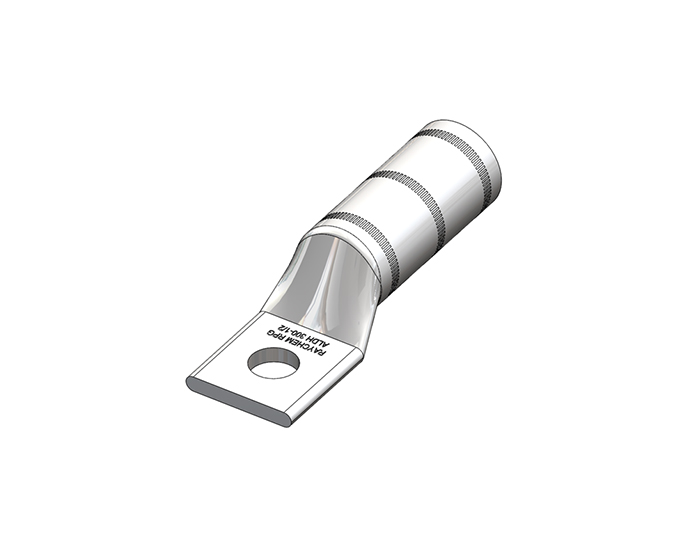

ALDH - One-hole Lugs - Aluminium Dual Rated Heavy Duty FullScreen
  • Features
  • Help & Support

For heavy duty aluminium and copper conductors

  • Make in India
  • One-Hole Aluminium Lugs - Dual Rated for aluminium and copper conductors ranging from 6 AWG – 750 MCM

Please connect with us

Specifications

Catalogue Code

Nominal Cross Section (AWG / Sq mm)

Dimensions (mm)

Stud Hole

Barrel ID

Palm Width

Barrel Length

Total Length

AWG

Sq mm

ØE

ØA

D

B

J

ALDH 12-1/2

12

13.2

2.80

22.3

25.4

65.1

ALDH 10-1/2

10

13.2

3.70

22.3

25.4

65.1

ALDH 8-1/2

10

13.2

4.20

22.3

33.3

79.4

ALDH 6 -1/2

16

13.2

5.60

22.3

33.3

79.4

ALDH 4-1/2

25

13.2

6.90

22.3

33.3

79.4

ALDH 3-1/2

30

13.2

7.70

22.3

33.3

79.4

ALDH 2 -1/2

35

13.2

8.60

22.3

33.3

79.4

ALDH 1-1/2

42

13.2

9.80

22.3

33.3

79.4

ALDH 1/0 -1/2

1/0

50

13.2

10.60

22.3

33.3

79.4

ALDH 2/0-1/2

2/0

70

13.2

12.20

30.0

35.3

84.5

ALDH 3/0-1/2

3/0

95

13.2

13.60

29.4

35.3

84.5

ALDH 4/0-1/2

4/0

120

13.2

15.10

31.8

35.3

84.5

ALDH 300-1/2

300

150

13.2

16.63

31.8

40.5

92.1

ALDH 350-1/2

350

185

13.2

18.30

31.8

40.5

92.1

ALDH 400-1/2

400

200

13.2

19.40

31.8

40.5

92.1

ALDH 500-1/2

500

240

13.2

23.50

45.0

50.90

108.0

ALDH 750-1/2

750

400

13.2

26.25

44.45

50.90

102.48

Technical Information

Parameter
Made of high conductivity aluminium with heavy duty wall thickness
Provides maximum conductivity, low resistance and ductility for excellent combination of  electrical and crimp forming properties
Designed for heavy duty applications upto 35kV
Material – High conductivity electrolytic aluminium
Finish – Electro tin plated



Certifications

UL Listed
UL Listed

More info available on request

ANSI certified
ANSI certified

More info available on request
